MSP1000 Filter modules

Demande
MSP1000 Filter modules

MSP1000 Filter modules

  • Double transponder module, two independent transmission channels in one slide-in module
  • Multirate operation for data rates from 1G up to 16G
  • Compatible with all SFP/SFP+ transceivers
  • Low costs due to 2R functionality
  • WDM Transponder Card
  • WDM Repeater Card
Télécharger (download)
Data sheet
Technical description MSP 1000
Informations détaillées
Description
Description

Filter modules in the MSP1000 design are also available for the MSP1000 platform for the integrated multiplexer solution.

A distinction is made here between the CWDM filter modules

- 8-Channel CWDM Multiplexer/Demultiplexer
- 8-Channel CWDM Multiplexer/Demultiplexer with Express Channel (1270 - 1430nm)

and the DWDM modular system:

- Band filter for decoupling up to 16 channels
- 4-channel cascading system, 4-channel DWDM multiplexer/demultiplexer

Furthermore, a broad portfolio of passive multiplexers in 19" design is available, which are mounted externally to the MSP1000 system.





Saisie

Produits
Produits
Products

MS425738E-47


Le produit est disponible

Angebot anfordern

MS425738E-47

FC8X CWDM Mux/DeMux Module 8 channels 1470..1610nm,expansion port 1270..1431nm LC/PC duplex, local: 8x LC/PC duplex, line: 1x LC/PC duplex, expansion: 1x LC/PC duplex

10x LC duplex SM ww

Products

MS425738-47


Le produit est disponible

Angebot anfordern

MS425738-47

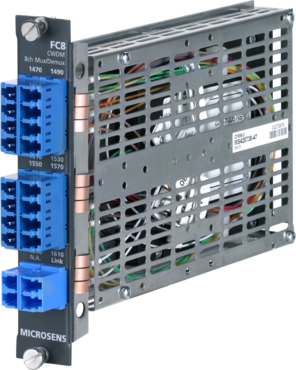

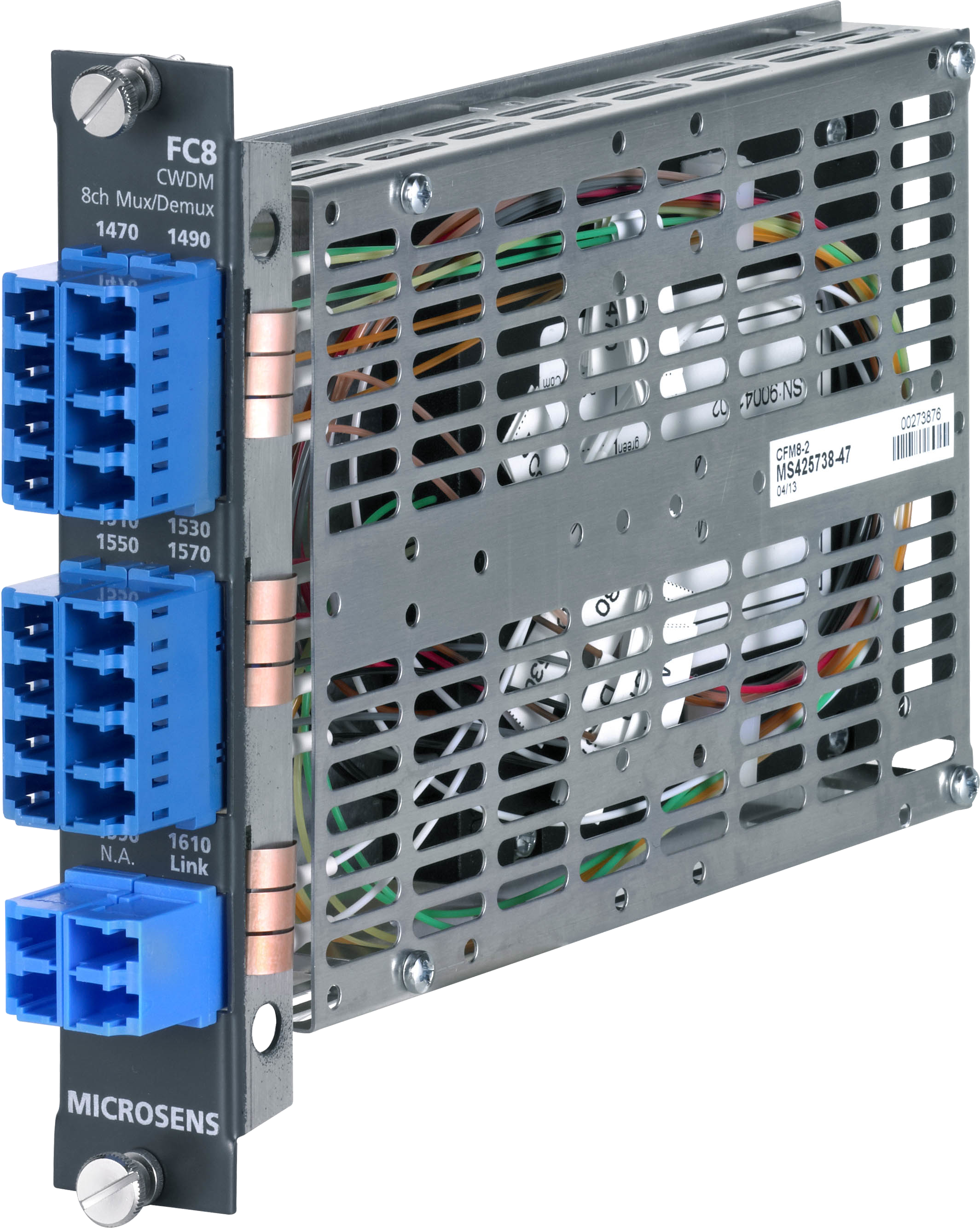

FC8 CWDM Mux/DeMux Module 8 channels 1470..1610nm, 9 x LC/PC duplex

9x LC duplex SM ww

Products

MS425710


Le produit est disponible

Angebot anfordern

MS425710

DWDM Bandfilter Module 4 bands with 4 channels skip 1, 41/46/51/56 dual direc.

6x LC duplex SM

Products

MS425711


Le produit est disponible

Angebot anfordern

MS425711

DWDM Bandfilter Module 4 bands with 4 channels skip 1, 21/26/31/36 dual direc.

6x LC duplex SM

Products

MS425712-D


Le produit est disponible

Angebot anfordern

MS425712-D

DWDM Bandfilter 8 bands with 4 channels skip 1, 21/26/.../56 demultiplexer

5x LC duplex SM

Products

MS425712-M


Le produit est disponible

Angebot anfordern

MS425712-M

DWDM Bandfilter 8 bands with 4 channels skip 1, 21/26/.../56 multiplexer

5x LC duplex SM

Products

MS425744-21


Le produit est disponible

Angebot anfordern

MS425744-21

DWDM Mux/DeMux Module 4 channels nn 100GHz 10xLCPC

5x LC duplex SM ww

Products

MS425744-26


Le produit est disponible

Angebot anfordern

MS425744-26

DWDM Mux/DeMux Module 4 channels 26..29 100GHz 10xLCPC

5x LC duplex SM ww

Products

MS425744-31


Le produit est disponible

Angebot anfordern

MS425744-31

DWDM Mux/DeMux Module 4 channels nn 100GHz 10xLCPC

5x LC duplex SM ww
