Wi-Fi Access Points for consistently high network performance in- and outdoors

MICROSENS expands its product portfolio with Wi-Fi access points for indoor and outdoor applications. With them, users can now consistently deploy network solutions from MICROSENS for all network media - fiberglass, copper and Wi-Fi.

The new Wi-Fi access points from MICROSENS are available both for indoor use and as weatherproof versions for outdoor use with an extended temperature range of -30 °C to +70 °C. Both versions operate in the 2.4 GHz range according to IEEE 802.11b/g/n/ax and in the 5 GHz range according to IEEE 802.3 a/n/ac/ax.

Business Applications

Typical business applications

Powerful fail-safe networks
Schools and classrooms
Airport check-in areas

Advantages

Advantages and options

Improved IT infrastructure resilience
Performance reserves for future applications
One network for switches & Access points

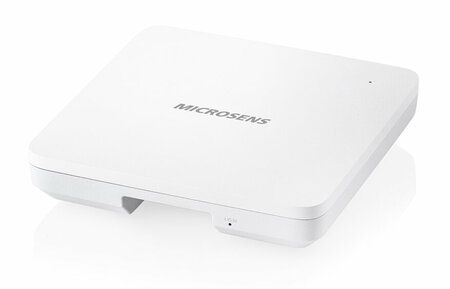

Indoor Access Point

Design Concept

High density, high aggregated throughput, heavy traffic loading through 4x4 Wi-Fi
4x4 Antenna for optimal TCO purchasing, installation and maintenance (unit price versus total units)
Most adapted performance on rate versus range & capacity in terms of cost/performance ratio

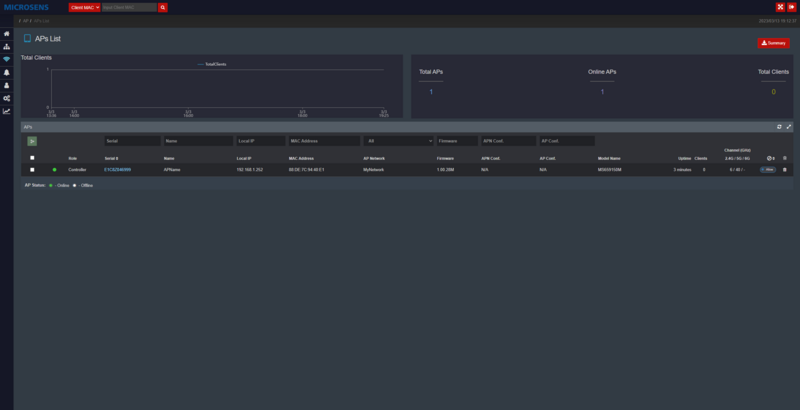

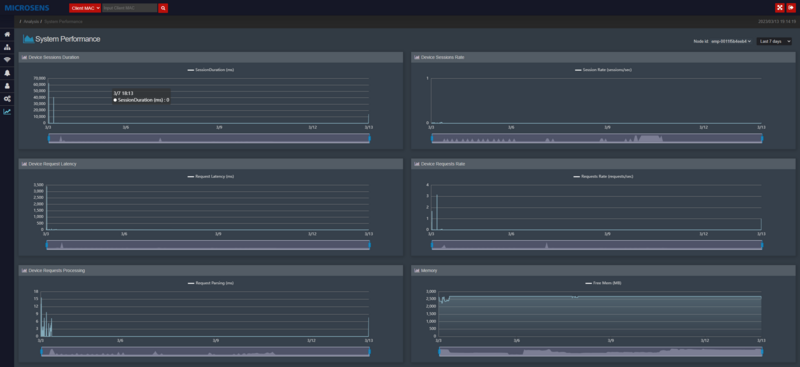

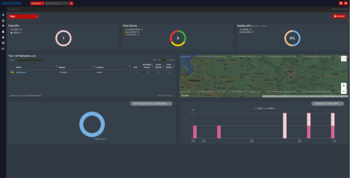

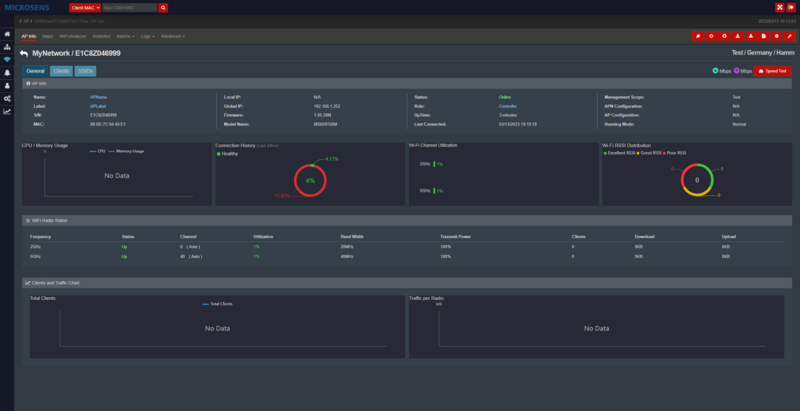

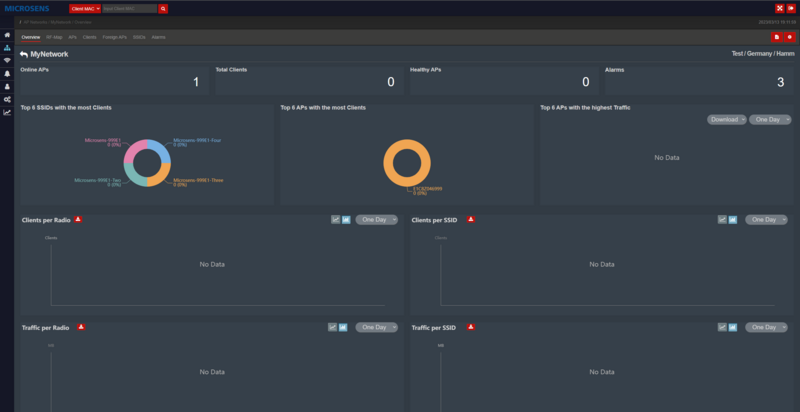

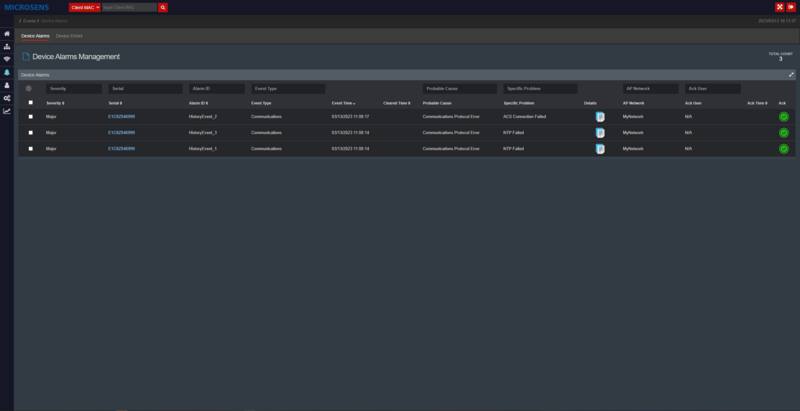

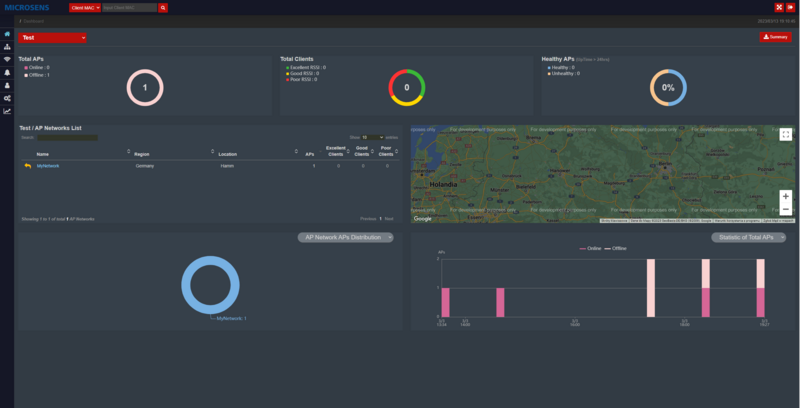

Elastic management via on premises (embedded controller)

Technical Data

Powerful Qualcomm IPQ8072A quad A53 64bit @2.2Ghz to support Controller functions
Wi-Fi 6: 4x4:4 + 4x4:4 ( support AX3600 2.4Ghz: 1148Mbps, 5Ghz: 2402Mbps)
Range 15-30m with full data rate
Dedicated Radio for RF scanning
LAN: 2.5Gbps x 1 and 1Gbps x 1
Mounting: Wall and Ceiling
Antenna: Internal PIFA reflector antenna
Power Supply: 12V DC or PoE+
220 x 220 x 43mm

TOP Features - Radio Ressource Management

Transmit Power Control
Coverage Hole Detection
Dynamic Channel Assignment
Band Steering
802.11 k/v/r clients steering

10G Micro Switch Product Package

The 10G Micro Switch is the perfect team player for the MS659150M

Both devices support 2.5Gbps
Both devices support the PoE requirements due to the support of IEEE 802.3af/at/bt on the G7 side
Wi-Fi coverage
The AP covers approx. 30m radius
Optimum results can be achieved with 1 AP per Office. In case the room is too big than the radius can be used to determine the number of APs

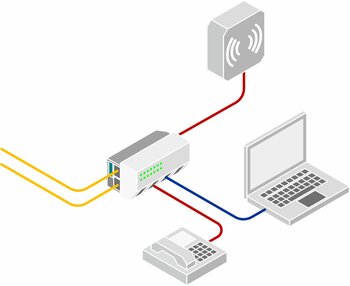

Wi-Fi Acces Points can be integrated in the network by using one of the hidden ports (Easy network expansion)
AP´s can be powered and managed by MS-Switch (Switch on/of remotely making maintenance of hard to reach AP´s easier)
No seperate cabling for Wi-Fi needed
In combination with our 10G Micro Switch Multigig acces points can be embedded as well

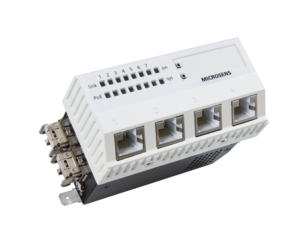

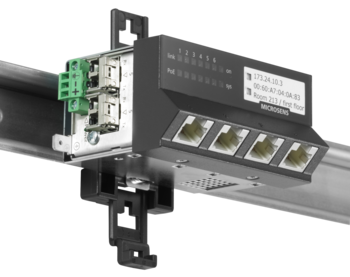

10G Micro Switch

- Same form factor as 1G FTTO switch
- 2x 10G SFP+, 4x 1G PoE, 1x 2.5/5G
- 60 W PoE++ (IEEE802.3bt)

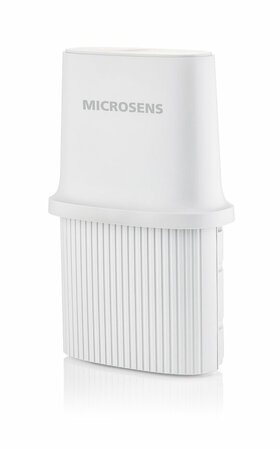

Outdoor Access Point

Design Concept

Ruggedized design is suitable for any hazardous environment (IP67, waterproof dust proof)
2x2 High performance antennas satisfy the long distance user scenario
Multi-points Mesh topology for seamless roaming network
Optional LTE/5G cellular for long range wireless broadband connection requirements
