MSP800 protocol transparent converter module

Inquiry

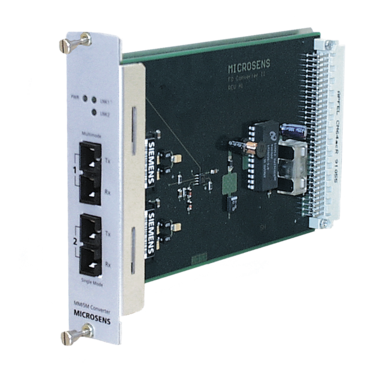

MSP800 protocol transparent converter module

MSP800 protocol transparent converter module

  • Protocol-transparent, bidirectional coupling of MM to SM optical fiber
  • Insertion module for installation in MICROSENS Access chassis
  • Transfer speeds up to 1.25 Gbps
  • Optimal bandwidth utilization through direct transmission with lowest possible latency time
  • Versions with distances up to 125km which can be bridged
  • Conversion to special interfaces possible
Download
Data sheet
Secure Download
Visio MSP800 Converter
Detail information
Description
Description

For the protocol transparent conversion from Multimode to Single Mode MICROSENS offers special insertion modules for the MSP800 platform.



The multimode / singlemode media converters support a protocol transparent, bidirectional coupling of multimode to singlemode optical fibers with different data rates of up to 1.25 GBit/s. The coupling is direct and transparent, without protocol conversion. Due to the transparent mode of operation at data rates up to 1.25 GBit/s, the converter can be used for all LAN, MAN and WAN applications such as Gigabit Ethernet, FDDI and ATM/Sonet (STM-1/OC-3).

A special version of the media converter with the same application supports data rates up to 155 Mbit/s without protocol conversion. Here, too, a broad portfolio of special fiber optics provides a versatile application in existing networks in order to implement different optics and use existing fiber cable paths. The 155Mbit/s variant supports protocols such as Fast Ethernet, FDDI, ATM/Sonet (STM-4/OC-12).

A special version with max. 40 Mbit/s supports even lower data rates for Ethernet (10 MBit/s) or E1 or E3. Depending on the requirements, the converter has different optical performance, wavelength and connection technology.

Items

Products
Products
Products

MS416504M


Product is available

Order offer

MS416504M

MSP800 MM/SM-Umsetzermodul managed max. 40MBit/s MM 850nm ST dupl. / SM 1310nm ST dupl. 15km, transparent

1x ST duplex MM, 1x ST duplex SM

Products

MS416590M


Product is available

Order offer

MS416590M

MSP800 MM/SM-Umsetzermodul managed max. 1.25Gbit/s MM 850nm SC dupl. / SM 1310nm SC dupl. 10km, transparent

1x SC duplex MM, 1x SC duplex SM

Products

MS416591M


Product is available

Order offer

MS416591M

MSP800 MM/SM-Umsetzermodul managed max. 1.25Gbit/s MM 850nm SC dupl. / SM 1310nm SC dupl. 20km, transparent

1x SC duplex MM, 1x SC duplex SM
