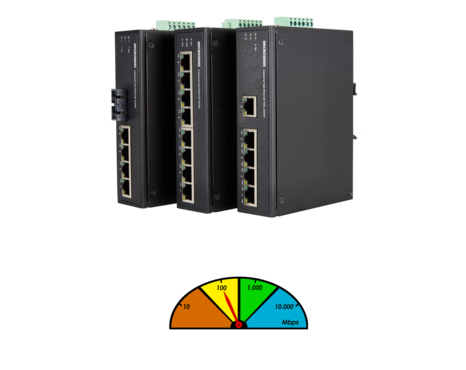

Industrial Entry Line Fast Ethernet Switch

Industrial Entry Line Fast Ethernet Switch

Cost-effective Plug and Play Fast Ethernet performance for industrial environments with DIN rail adapter and extended operating temperature range -40°..+75°C
Version with 8x TP 10/100Base-TX available (MS657140X)
Several versions with TP or fiber optic uplink in SC/ST in multimode or single mode
Dual DC-Inputs 12..56 VDC
Potential-free relay contact
Robust metal housing with IP-30 protection class

Industrial Power Supplies

Download

Data sheet MS65710xxX

Data sheet MS657140X

Manual MS657100X

Manual MS657140X

Secure Download

Visio Entry Line FE Switches

Detail information

Description

The Entry-Line series stands for economical and powerful Plug and Play Industrial Ethernet solutions. It offers a wide range of devices with diverse features. The Entry Line Fast Ethernet Switches product series consists of the following versions with different network interfaces:

- 5-Port Fast Ethernet Switch (5x 10/100Base-TX)

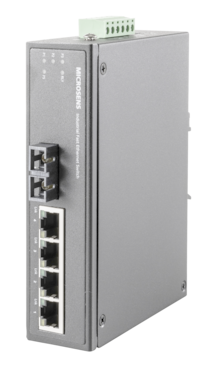

- 5-Port Fast Ethernet Switch (4x 10/100Base-TX, 1x 100Base-FX Multimode SC)

- 5-Port Fast Ethernet Switch (4x 10/100Base-TX, 1x 100Base-FX Single Mode SC)

- 8-Port Fast Ethernet Switch (8x 10/100Base-TX)

In addition to the 5-port switches, an 8-port version with the same dimensions is available. Three power supply inputs enable redundant power supply of the switches and connected end devices. If the voltage of the primary or secondary supply fails, an alarm can be triggered.

The robust metal housing with DIN-Rail adapter (as well as alternative wall mounting adapters included), the voltage input with wide range and the extended operating temperature range from -40° to +75°C are further features of the Entry Line series.

Items

Products

Products

MS650147

Product is available

Order offer

MS650147

Profi Line Umsetzer RS-232/LWL 1x RS-232, 1x LWL 1310nm SingleMode SC duplex 15km, DIN-Rail, RC

1x seriell, 1x SC duplex SM, 2x 2plg. 24VDC, 1x RC

Products

MS657100X

Product is available

Order offer

MS657100X

5-Port FE Industrial Entry Line Switch 5x 10/100TX DIN-Rail, -40..+75°C, 9..56VDC, 1x RC

5x RJ-45, 2x 2plg. 9..56VDC, 1x DIN-Conn., 1x RC

Products

MS657102X

Product is available

Order offer

MS657102X

5-Port FE Industrial Entry Line Switch 1x 100FX SC/MM, 4x 10/100TX, DIN-Rail, -40..+75°C, 9..56VDC, 1x RC

4x RJ-45, 1x SC duplex MM, 2x 2plg. 9..56VDC, 1x DIN-Conn., 1x RC

Products

MS657104X

Product is available

Order offer

MS657104X

5-Port FE Industrial Entry Line Switch 1x 100FX SC/SM, 4x 10/100TX, DIN-Rail, -40..+75°C, 9..56VDC, 1x RC

4x RJ-45, 1x SC duplex SM, 2x 2plg. 9..56VDC, 1x DIN-Conn., 1x RC

Products

MS657140X

Product is available

Order offer

MS657140X

8-Port FE Industrial Entry Line Switch 8x 10/100TX, DIN-Rail, -40..+75°C, 12..56VDC, 1x RC

8x RJ-45, 2x 2plg. 12..56VDC, 1x RC

End of Life / Out of product range

MS655100X

show alternative

Product reached his Life-Time

Order offer

MS655100X

End of Life / Out of product range

5 Port Industrial Switch 5x10/100Base-TX Entry Line Series ext. Temp. range

EOL -> MS657100X

hide alternative

MS657100X

hide alternative

Product is available

Order offer

MS657100X

hide alternative

5-Port FE Industrial Entry Line Switch 5x 10/100TX DIN-Rail, -40..+75°C, 9..56VDC, 1x RC

5x RJ-45, 2x 2plg. 9..56VDC, 1x DIN-Conn., 1x RC

End of Life / Out of product range

MS655102X

show alternative

Product reached his Life-Time

Order offer

MS655102X

End of Life / Out of product range

5 Port Industrial Switch FO Uplink SC 4x10/100BaseTX 1x100BaseFX 1310nm MM SC extended temperature range -40..+75°C

EOL -> MS657102X

hide alternative

MS657102X

hide alternative

Product is available

Order offer

MS657102X

hide alternative

5-Port FE Industrial Entry Line Switch 1x 100FX SC/MM, 4x 10/100TX, DIN-Rail, -40..+75°C, 9..56VDC, 1x RC

4x RJ-45, 1x SC duplex MM, 2x 2plg. 9..56VDC, 1x DIN-Conn., 1x RC

End of Life / Out of product range

MS655104X

show alternative

Product reached his Life-Time

Order offer

MS655104X

End of Life / Out of product range

5 Port Industrial Switch FO Uplink SC SM 4x10/100BaseTX 1x100BaseFX 1310nm SM30km

EOL -> MS657104X

hide alternative

MS657104X

hide alternative

Product is available

Order offer

MS657104X

hide alternative

5-Port FE Industrial Entry Line Switch 1x 100FX SC/SM, 4x 10/100TX, DIN-Rail, -40..+75°C, 9..56VDC, 1x RC

4x RJ-45, 1x SC duplex SM, 2x 2plg. 9..56VDC, 1x DIN-Conn., 1x RC

End of Life / Out of product range

MS655140X

show alternative

Product reached his Life-Time

Order offer

MS655140X

End of Life / Out of product range

8 Port Industrial Switch 8x10/100Base-TX Entry Line Series extended temperature range -40..+75°C

EOL -> MS657140X

hide alternative

MS657140X

hide alternative

Product is available

Order offer

MS657140X

hide alternative

8-Port FE Industrial Entry Line Switch 8x 10/100TX, DIN-Rail, -40..+75°C, 12..56VDC, 1x RC

8x RJ-45, 2x 2plg. 12..56VDC, 1x RC
