Controlador central de smart iluminación

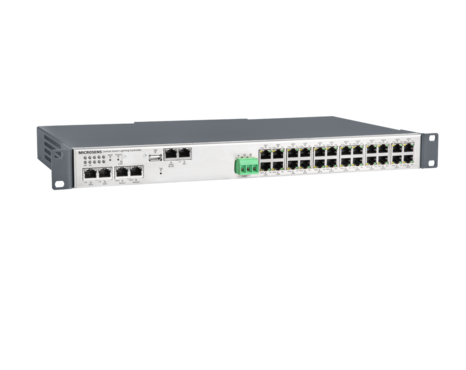

The MICROSENS Central Smart Lighting Controller is designed to drive and control up to 24 independent LED lights from a central location. Typical areas of applications are intelligent control of light and brightness in various environments like offices, hotels, hospitals, corridors and many more.

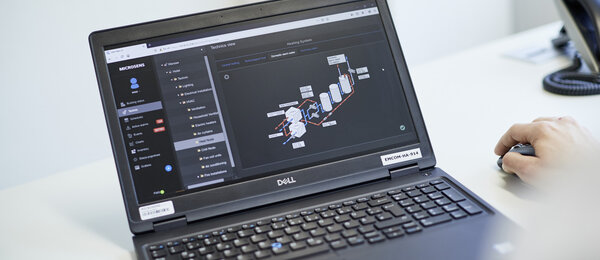

The Central Smart Lighting Controller is managed by the integrated MICROSENS Smart Director App. Optionally; multiple controllers can be managed via the Smart Building Manager server application. Furthermore, the controller collects light level data from up to eight separate sensor devices. Based on these data, the Smart Director App automatically adjusts the light level. As a member of the MICROSENS Smart Building Solutions family, the Central Smart Lighting Controller seamlessly integrates with other IP devices in the network.

Features:

• 24 LED driver channels max. 1000 W total output power per chassis
• Max. 1A@50V output current per channel
• Fully dimmable 0-100% per channel
• Integrated power monitoring per channel
• RJ-45 jack per channel for direct connection to structured cabling system
• Input: 54 VDC, max. 1100 W
• Integrated MICROSENS Smart Director App for room control
• Fast Ethernet network interface
• RJ-45 jacks for connection of light level sensors
