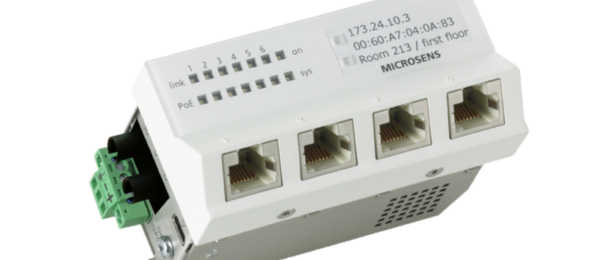

6-Port GbE Micro Switch G6 PoE+

MS440207PM-48G6+

MS440207PM-48G6+GT

front and rear view

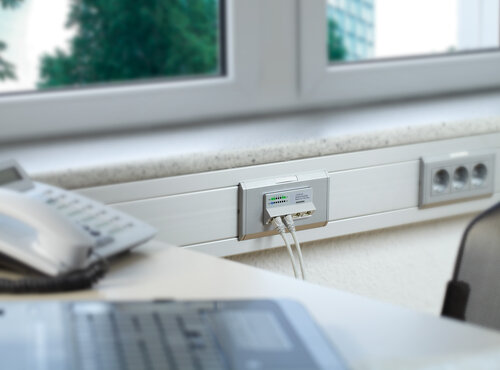

horizontal installation

vertical installation

installed in floor tank

6-Port GbE Micro Switch G6 PoE+

El Switch Gigabit Ethernet más pequeño y compacto del mercado Diseño M45 para una instalación sin herramientas en conductos de cables, depósitos de suelo, etc.
Switch de Full Gigabit Ethernet de 6 puertos sin bloqueo
Alta seguridad mediante SSH, HTTPS, SNMPv3, Port Security 802.1x y compatibilidad total con RADIUS NAC
Power-over-Ethernet (PoE+) con máx. 30 W en todos los puertos RJ-45
Gestión intuitiva vía Web, SSH, interfaz SNMP y software MICROSENS NMP
Enlace ascendente de fibra SFP con Dual-Speed 100/1000Base-X, opcionalmente como versión de fibra óptica 2x o con fibra óptica SC/ST integrada

Download

All downloads

Customer information hardware revision

Data sheet

FW-Features

FW-Manual

Installation Document

WP_Decentralized networks

WP_Secure building networks

FTTO Redundancy concepts

Revit file (rfa) MS440209PM-48G6+

Revit file (rfa) MS440219PM-48G6+

Data sheet MS4403xxPM

Secure Download

Firmware G6 v10.8.2a

Firmware G6 v10.8.2

Firmware G6 V12.8.0b - since Hardware 2.0

Visio_MicroSwitch

microSCRIPTING-Guide_G6_v33_EN

Detail information

Description

With the current 6th generation of Micro Switches (according to IEEE 802.3az Energy Efficient Ethernet) MICROSENS continues to use the unique device form of the installation switch, which has been available since 1995. Within the Fiber to the Office (FTTO) concept, the Micro Switch represents the decentralized workstation component. It converts or switches the optical signal coming directly from the central building distributor in the form of a fiber optic interface, to a typical RJ-45 user interface.

The fiber optic uplink can optionally be equipped with fixed SC or ST optics in multimode or single mode or as SFP slot (Dual Speed 100/1000Base-X). Besides this, there is another port hidden within the installation (also referred to by MICROSENS as "downlink"). This downlink serves as an extension or hidden user port when the FTTO network is aligned in a star configuration in order to network further applications (WLAN access point in the double ceiling or similar) within the cabling infrastructure. In the case of the MS4402x7... (2x 100/1000Base-X SFP slots), double fiber optic version the second optical interface can be used for FO-based topology expansion (e.g. bus or ring topology for redundancy purposes, see application examples within the FTTO).

In the Micro Switch version with PoE+ (according to IEEE 802.3at, downward compatible IEEE 802.3af), the switch has 4 or 5 TP ports with PSE (Powered Source Equipment). Depending on the version, this can supply PoE-compliant terminal devices (VoIP telephones, WLAN access points, IP cameras, thin clients, etc.) within the office environment directly and without a separate power supply with power (54 VDC typ.). Within the installation, 4 TP ports 10/100/1000Base-T are always designed as user ports.

Due to the power requirement required by the PoE function, the PoE version of the micro switch is supplied with 54 VDC voltage. This voltage is typically generated by an external installation power supply (e.g. MS700710), the power supply is integrated into the installation.

The hidden mini-USB interface serves as a console port for direct management access to the high-performance Layer2 management. This is based on a future-proof Linux operating system. The firmware feature list (see download area) shows the very wide range of features (especially in the area of IT security, IEEE 802.1x, VLANs IEEE 802.1q etc.), which is always extended by the implemented features after the firmware has been upgraded.

Access to the switch is password-protected via all common management interfaces such as browser-based (via web browser https/http), SSH, SNMPv3. MICROSENS NMP software optimizes access to a large number of micro switches within an FTTO network using group and master configuration.

The microSD card slot can optionally be used as a backup system for firmware and configuration. The complete device status can be transferred by exchanging the card. The memory card complies with the industry standard. A fault-tolerant journaling file system is used, which can be encrypted using the security option.

Items

Products

MS440209PM-48G6+

Product is available

6-Port GbE Micro Switch G6 PoE+

Microswitch Ruggedized GbE G6 PoE+ de 6 puertos

Microswitch FE G6 PoE+ de 6 puertos
