Ruggedized Micro Switch

Ruggedized Micro Switch

Bridging the gap between Office Networks and Industrial Ethernet

MICROSENS Ruggedized Micro Switch closes the gap between Office Networks and Industrial Ethernet in the most economically efficient way.

The Ruggedized Micro Switch is the perfect solution for common IT tasks in infrastructures where investment in Industrial Ethernet components isn´t economically feasible, but standard office equipment can´t do the job.





APPLICATION EXAMPLES:

    • WiFi Hotspots
    • IP-video surveillance
    • Ticket machines
    • Parking garages and underground car parks

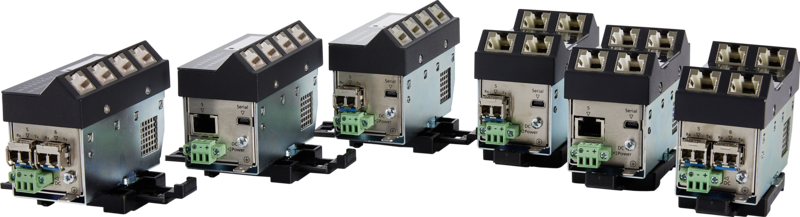

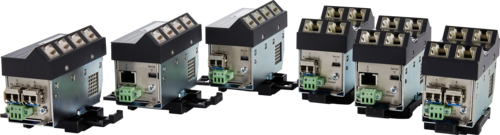

    Ruggedized Micro Switches

    Outdoor Boxes IP66/67

    PROVEN TECHNOLOGY IN A HARSH ENVIRONMENT

    For decades users have relied on MICROSENS office- and industrial switches. With the Ruggedized Micro Switch, MICROSENS offers the perfect solution for all applications where users want to use the strengths of the well-established Micro Switches outside the protected office environment. The small sized, robust switch provides maximum availability, reliability and security. It connects office and industrial applications in a very cost-efficient way.





    TECHNICAL FEATURES

    • 4x 10/100/1000 Mbps user ports
    • Two Gigabit Ethernet uplink/downlink ports. For enhanced reliability through redundancy, such as Dual Homing and ring topology, optionally with: 2x SFP slots for purely fiber-based networks; 1x SFP slot and 1x RJ-45 connector; 2x RJ-45 connectors
    • Easy management via Web, Telnet, and SNMP interface, and MICROSENS NMP software
    • Integration/interface to already existing network management systems via SNMP
    • Extensive options for automation through comprehensive Command Line Interface
    • Integration in MICROSENS NMP for easy and efficient configuration, management, and monitoring of networks
    • Firmware and configuration can be stored on microSD card for short recovery times
    • High level of security through encrypted protocols, such as SSH and HTTPS
    • Port security according to IEEE 802.1X, Radius, compatible with all conventional NAC solutions
    • Power supply either as ̃230 V AC for direct supply from the power network. ̃54 V DC for the connection to an existing DC power network, optionally with external power supply
    • High level of energy efficiency through state-of-the-art chip technology
    • Energy-Efficient Ethernet (EEE)
    • Fast, tool-free snap-in installation.
    • Adapters for mounting on DIN rails available
    • Internationally standardized 45 mm installation size
    • Extended temperature range of -25 to +65 degree centigrade

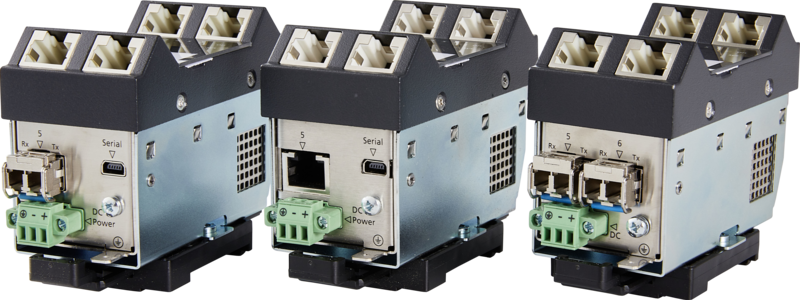

    COMPACT SWITCH WITH MANY OPTIONS



    The Ruggedized Micro Switch offers six Gigabit Ethernet ports, four of them on the front-end as 10/100/1000Base-T ports with PoE+. These ports can be used to connect end devices directly. The two up/down link ports with twisted pair and/or fiber optic ports are concealed. The switch management makes it possible to switch the Power-over-Ethernet function on/off for a remote power reset of the end devices. This is particularly convenient for hard-to-reach end devices, such as WIFI access points and IP cameras.

    Furthermore, the switch detects a lost network connection and depending on the configuration, performs a reset automatically. The two uplink/downlink ports allow an easy setup of star, ring, or bus structures. This means, the switch can be integrated into efficient redundancy concepts for increased network availability. Due to the extended temperature range of -25 to +65 degree centigrade, the Ruggedized Micro Switch can be operated in environments where switches for office environments are no longer an option.

    With the well-proven MICROSENS Access Security it can be easily integrated into existing security concepts. The Ruggedized Micro Switch is also available in a version with an RJ-45 uplink. Existing copper cabling can thus continue to be used, which makes a particularly economical solution possible. Power is supplied either via Power-over-Ethernet (PoE PD) or using DC voltage in the range of 44 to 57 V DC or 230 V AC.

    Horizontal and vertical designs are available for an ideal, user-friendly installation. The switches can be mounted on DIN rails in distribution boxes and enclosures, both in indoor and outdoor environments. Due to the fanless design, air conditioning isn´t required. The switch can be installed in IP rated enclosures as well. Additionally, a wide range of practical installation accessories is available to ensure an easy installation and perfect operation.
