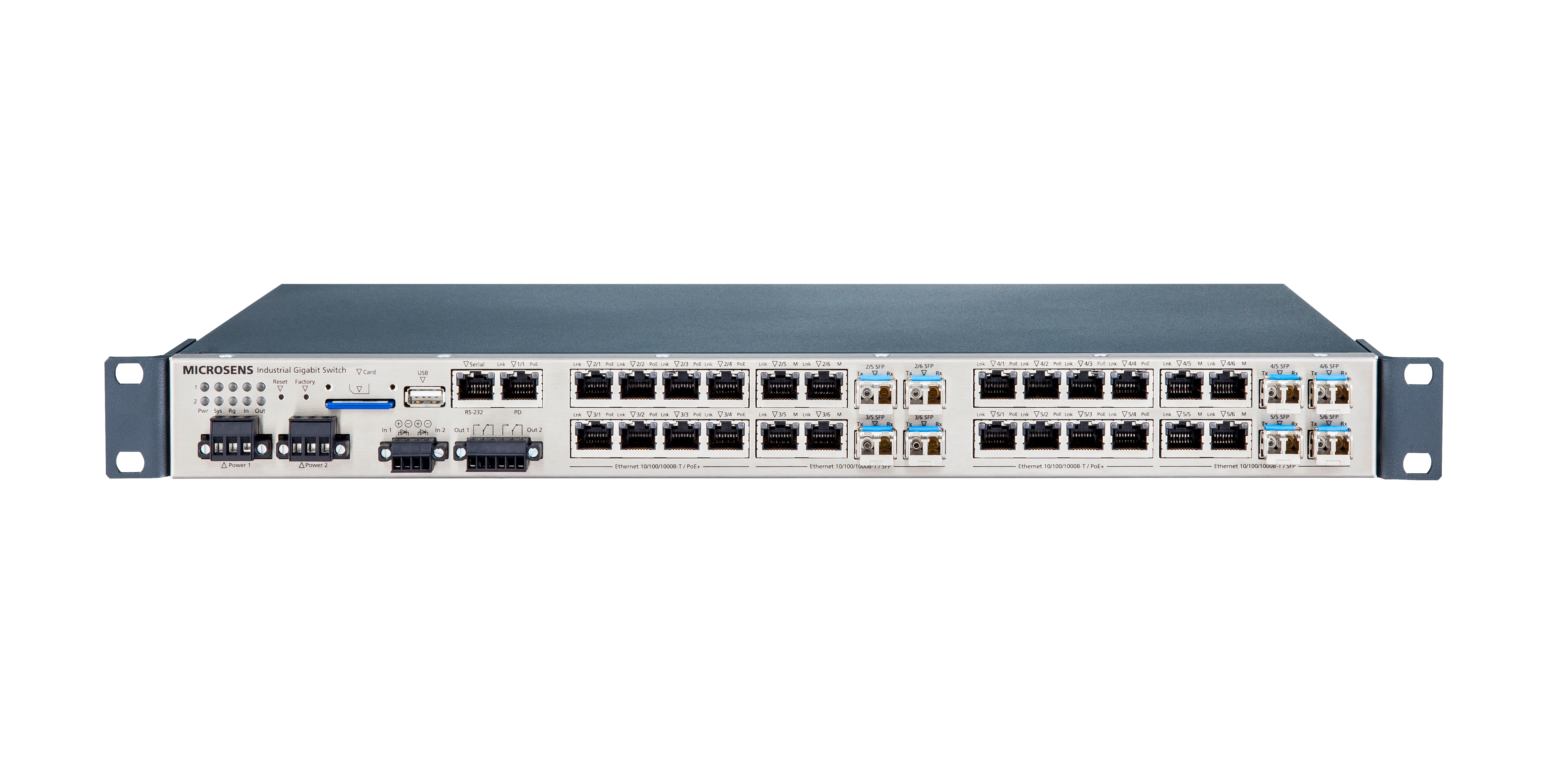

25-Port GBE Industrial Profi Line Rack Switch 19" PoE+

Full Gigabit Performance with Energy-Efficient Ethernet, 25 GBE-,(16 PoE+ and 8 fiber optic-Comboports)
Power-over-Ethernet+ (802.3at) with a power budget of 240W, special version available with a total of 16x PoE+ (480W)
Intuitive management via Web, SSH, SNMP interface and MICROSENS NMP software
Robust, compact and fanless VA housing with integrated DIN rail adapter, extended operating temperature range from -40°..+75°C
High security through SSH, HTTPS, SNMPv3, Port Security 802.1x and full RADIUS NAC compatible
Redundant in power and data, fail-safe due to MICROSENS ring function with shortest recovery time

A high-performance network in old walls – FTTO in the Leipzig New City Hall

Download

Data sheet

FW-Features

WP_Decentralized networks

WP- Secure building networks

FTTO Redundancy concepts

Revit file (rfa) MS400890MX-V2

Secure Download

Firmware G6 v10.8.2

Firmware G6 v10.8.2a

Visio ProfiLineRack

microSCRIPTING-Guide_G6_v33_EN

Detail information

Description

In addition to the extensive industrial product portfolio for DIN rail mounting, MICROSENS offers a 25 port Gigabit Ethernet switch in 19" version. The Profi Line Rack Switch was developed for use in harsh industrial environments and sets new standards in reliability and performance.

The switch offers a total of 25 Gigabit Ethernet ports, eight of which can be upgraded as combo ports with SFP modules to fiber optic connections. A total of 16 copper ports offer PoE/PoE+ functionality, allowing connected terminals to be supplied with power cost-effectively and without additional cabling.

The fanless switch is operated with a DC voltage in the range of 24..57 VDC and is used in the extended operating temperature range of -40..+75 °C. The switch can be used in a wide variety of applications. With its compact size of 1 U, it also has two alarm inputs and outputs each, for example for cabinet monitoring or sensor/actuator integration.

The Profi Line Rack Switch has been designed for highest availability with shortest recovery times. Industrial ring structures can be set up both via the SFP ports and via the copper ports. In the event of a fault, a special mechanism detects the failure of a network node or the interruption of the line and automatically reconfigures the network within milliseconds.

Switch operating system, firmware and configuration data are stored on an SD card. Should a switch have to be replaced, the existing SD card is simply inserted into the new device, which automatically takes over all settings.
