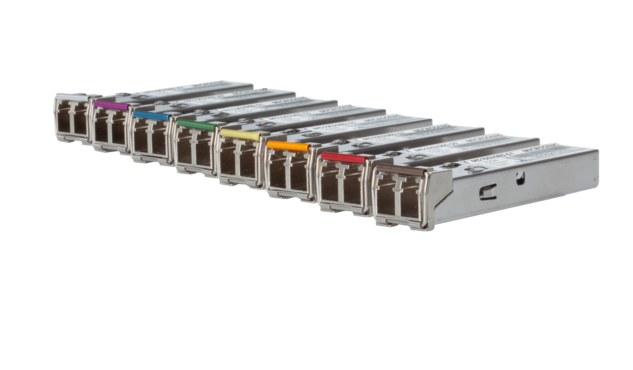

xWDM Transceiver
- Wide range of transceivers, tested manufacturer quality for maximum lifespan and fatigue strength in operation
- xWDM Wavelengths standardized according to ITU-T G.694.1 (DWDM) and ITU-T G.694.2 (CWDM)
- Tested and approved for optimal use within MICROSENS MSP1000 and MSP3000
- Multiple versions in portfolio for multiprotocol applications
- Wide range of performance classes, optimally selected for specific use according to measurement protocol or described route guidance
Téléchargements protégésxWDM technology and the use of high-performance optical devices are now part of the standard repertoire of companies wishing to optimize the capacity of an existing fiber optic line (e.g. dark fiber).
The flexible design and the flexible use of optical transceivers (SFP / SFP+) also allow fast adaptations in the xWDM area to constantly changing conditions for the coupling of locations.
The MSP1000 platform together with SFPs and SFP+ are the ideal optical modules for setting up high-performance networks.
The wide MICROSENS product portfolio of transceivers for CWDM and DWDM infrastructures distinguises itself by different parameters in the form of
- Performance parameters of the SFPs (typ. with specification of ranges and power budget of the xWDM transceiver (from typ. 10km up to typ. 160km)
- the protocol to be transmitted, suitable for the application (Ethernet, Fibre Channel, SDH/SONET, etc.) and bandwidth
- the multi-protocol function (depending on the transceiver, the transceiver covers a wider bandwidth requirement (e.g. 4/8/16G Fibre Channel) to automatically cover automatic speed adjustments and requirements within the entire topology (without exchanging the transceiver)
- the version as CWDM or DWDM optics and the channel number (standardized according to ITU)
- special local SFP+ transceivers with CDR (Clock Data Recovery) depending on the active application
MS100206D-WW
Le produit est disponible
MS100206D-WW
CWDM SFP Transceiver 1.25Gb&1.0625Gb Single Mode 1ww0nm LC min.19dB diagn. ww-CWDM Wavelength
1x LC duplex SM ww
MS100207D-WW
Le produit est disponible
MS100207D-WW
CWDM SFP Transceiver 1.25Gb&1.0625Gb Single Mode 1ww0nm LC min.24dB diagn. ww-CWDM Wavelength
1x LC duplex SM ww
MS100295D-WW
Le produit est disponible
MS100295D-WW
SFP Pluggable Multirate CWDM Transceiver max. 2,7 GBit/s, Monomode LC 1ww0nm DFB Laser, OC-3/STM-1, OC-12/STM-4, OC-48/STM-16, Gigabit Ethernet, 1x/2x FC, min. 30dB Budget
1x LC duplex SM ww
MS100296D-WW
Le produit est disponible
MS100296D-WW
SFP Pluggable Multirate CWDM Transceiver max. 2,7 GBit/s, Monomode LC 1ww0nm DFB Laser, OC-3/STM-1, OC-12/STM-4, OC-48/STM-16, Gigabit Ethernet, 1x/2x FC, 80 km min. 32dB Budget
1x LC duplex SM ww
MS100297D-WW
Le produit est disponible
MS100297D-WW
SFP Pluggable Multirate CWDM Transceiver max. 2,7 GBit/s, Monomode LC 1ww0nm DFB Laser, OC-3/STM-1, OC-12/STM-4, OC-48/STM-16, Gigabit Ethernet, 1x/2x FC, 80km min. 34dB Budget
1x LC duplex SM ww
MS100320D-NN
Le produit est disponible
MS100320D-NN
DWDM Multirate Line Interface 100 Mbps..2.7 Gbps for Fast Ethernet, STM-1/OC-3, STM-4/OC-12, STM-16/OC-48, ESCON, Gigabit Ethernet, 1x/2x Fibre Channel, Single Mode DWDM Laser, nn: ITU C-Band Channel 17-60, LC connector, min. 28dB link budget, 110km performance
1x LC duplex SM ww
MS100321D-NN
Le produit est disponible
MS100321D-NN
DWDM Multirate Line Interface 100 Mbps..2.7 Gbps for Fast Ethernet, STM-1/OC-3, STM-4/OC-12, STM-16/OC-48, ESCON, Gigabit Ethernet, 1x/2x Fibre Channel, Single Mode DWDM Laser, nn: ITU C-Band Channel 17-60, LC connector, min. 32dB link budget, 160km performance
1x LC duplex SM ww
MS100340D
Le produit est disponible
MS100340D
Tunable Multirate DWDM SFP+ Transceiver 8,5/9,95..11,3Gbps Single Mode LC 22dB 80km 8G & 10G Fibre Channel / 10G Ethernet / 10G SONET/SDH
1x LC duplex SM tun.
MS100600
Le produit est disponible
MS100600
Transceiver 100GBASE-SR10 CFP (2 km), 1550 nm Single Mode, LC connector
MS100601
Le produit est disponible
MS100601
100GBase-SR10 CFP (100m), 850nm, MPO 2x12 multimode fiber connector, no DDM
MS100610
Le produit est disponible
MS100610
Transceiver 100GBASE-LR10 CFP (10 km), 1550 nm Single Mode, LC connector
MS100611
Le produit est disponible
MS100611
100GBase-LR4 CFP (10 Km), 1310nm, LC/PC singlemode Connector
MS100612
Le produit est disponible
MS100612
CFP LR4 Dual Rate (100 GE & OTU4) 10km, 1310 nm, LC/PC
MS100614
Le produit est disponible
MS100614
CFP LR4 (100 GE) 10km, 1310 nm, LC/PC
MS100620
Le produit est disponible
MS100620
QSFP28 LR4 100GE (10km), 1310nm, LC/PC singlemode connector
MS100621
Le produit est disponible
MS100621
QSFP28 SR4 Multimode 850nm, MPO connector, 100m
MS100622
Le produit est disponible
MS100622
QSFP28 LR4 DUAL RATE (100GbE & OTU4), 10 km, 1310 nm, LC/PC
MS100714D-ww
Le produit est disponible
MS100714D-ww
SFP+ Pluggable Transceiver 10GBE, 10G SONET/SDH, Single Mode CWDM, 14,8dB, 40km, LC
1x LC duplex SM ww
MS100716D-ww
Le produit est disponible
MS100716D-ww
SFP+ Pluggable Transceiver 10GBE, 10G SONET/SDH, Single Mode CWDM, 23dB, 80km, LC
1x LC duplex SM ww
MS100724D-nn
Le produit est disponible
MS100724D-nn
SFP+ Pluggable Transceiver 10GBE, 10G SONET/SDH Single Mode DWDM, 14dB, 40km, LC
1x LC duplex SM ww
MS100726D-nn
Le produit est disponible
MS100726D-nn
SFP+ Multiprotocol DWDM Transceiver 10Gbps ITU-chn. 21-60, 23dBm/80km, LC
1x LC duplex SM ww
MS100744D-ww
Le produit est disponible
MS100744D-ww
SFP+ Pluggable Transceiver 8GFC, Single Mode CWDM, 14dB, 40km, LC, Channel ww
MS100746D-ww
Le produit est disponible
MS100746D-ww
SFP+ Pluggable Transceiver 8GFC, Single Mode CWDM, 23dB, 80km, LC, Channel ww
MS100754D-nn
Le produit est disponible
MS100754D-nn
SFP+ DWDM Transceiver 8Gbps FC Single Mode 14dBm/40km, LC, ITU channel must be defined
1x LC duplex SM ww
MS100756D-nn
Le produit est disponible
MS100756D-nn
SFP+ DWDM Transceiver 8Gbps FC Single Mode ITU-chn. 21-60, 23dBm/80km, LC
1x LC duplex SM ww
MS100770D
Le produit est disponible
MS100770D
SFP+ Pluggable Transceiver 4/8/16 Gbps FibreChannel, MM 850nm, 35m on 50/125µm, LC
1x LC duplex MM
MS100772D
Le produit est disponible
MS100772D
SFP+ Pluggable Transceiver4/8/16 Gbps FiberChannel through Rate Select, 10GBASE-LR/LW 10G Ethernet Single Mode 1310nm, 10km on 9/125µm SMF, LC
1x LC duplex SM
MS100795D-nn
Le produit est disponible
MS100795D-nn
SFP+ Pluggable Transceiver withCDR,Tri Rate4/8/16G Fibre Channel /FICON, Single Mode DWDM, 14dB, 40km nn: ITU C-Band Channel 21-60
1x LC duplex SM ww
