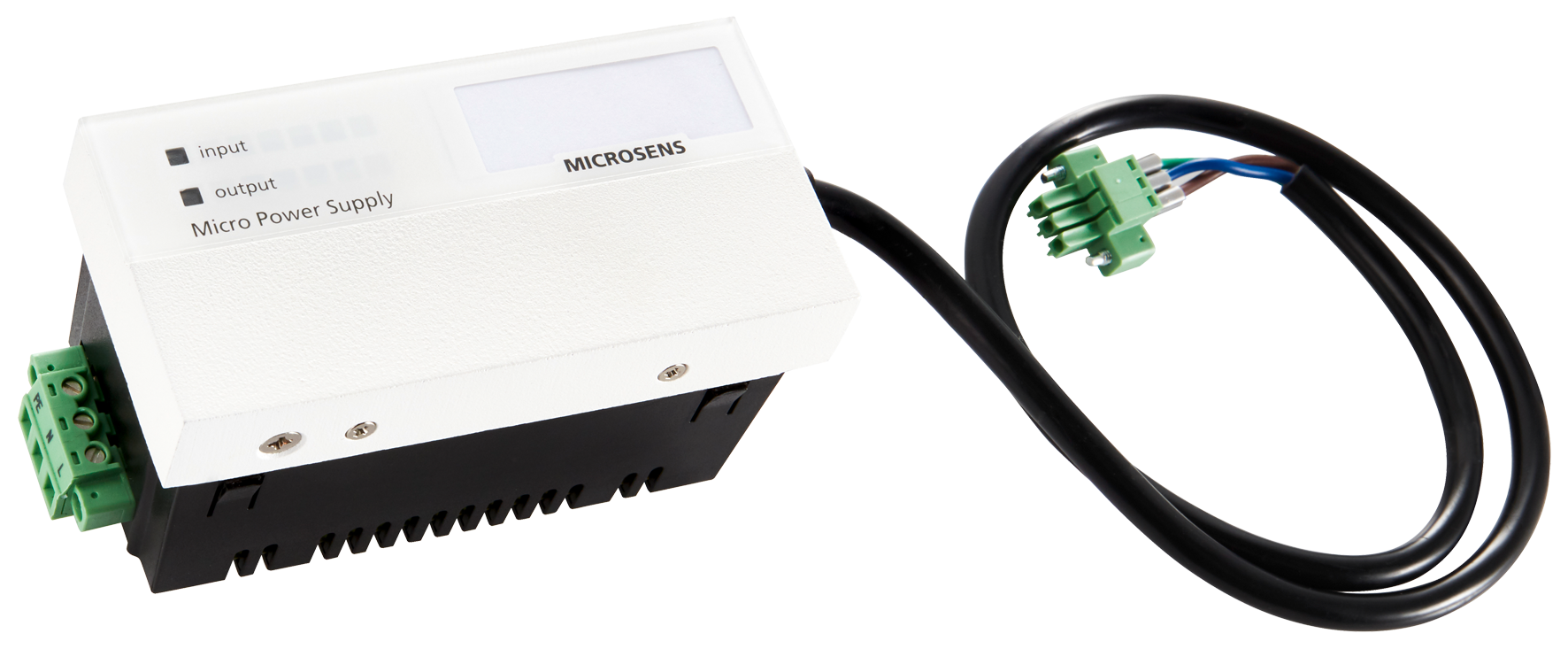

Micro Power Supply PoE+, Power Supply for Micro Switches in M45 Design

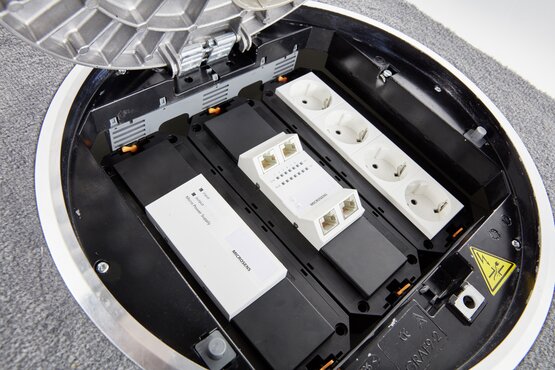

Optimized for use in cable ducts, floor tanks, etc.
Input voltage 90..264 VAC, output voltage 54 VDC, 70 W
Compatible with all PoE+, IEEE 802.3af/at MICROSENS Micro Switch models
Separate LED for availability indication of AC input and DC output voltage
Easy and fast installation, similar to the Micro Switch

FTTO PoE+ Power Supply

Télécharger (download)

Installation Document

Data Sheet MS700750

Data Sheet MS700751

Revit file (rfa) MS700750

Revit file (rfa) MS700751

Informations détaillées

Description

The MICROSENS Micro Power Supply was designed for fast snap-in mounting in cable ducts with M45 module dimensions. The main field of application is the DC power supply of devices with Power-over-Ethernet output (PoE+ according to IEEE 802.3af or IEEE 802.3at).

To simplify IT servicing, the Micro Power Supply has LEDs for monitoring primary AC input and secondary DC output voltage. This makes the availability of the power supply visible at a glance. Even during the recording of fault messages, possible faults associated with the terminal device power supply can be diagnosed easily.

The Micro Power Supply can be compared with the Micro Switch in terms of pure installation adaptation (grid dimension 90 x 45 mm). This eliminates the need for special installation adapters and existing adapter portfolio can be used.
