GbE Transceiver

GbE Transceiver

simplex SFP

simplex SFP

Twisted Pair SFP

Twisted Pair SFP

Twisted Pair SFP

GbE Transceiver

Highlights
Success Stories

Wide range of transceivers, tested manufacturer quality for maximum lifespan and fatigue strength in operation
Optionally with extended operating temperature range, recommended for use in fan-less / passively cooled devices
Simplex versions for bi-directional use available (Single Mode)

Detecting goals with sophisticated technology and reliable gigabit fiber optic connections: French Ligue 1 relies on…
Creative, sustainable, practical - Eniwa implements design network

Download

Data sheet MS100001x

Data sheet MS100090x

Data sheet MS1002xx

Data sheet Low Power SFP MS1002xx

Revit file (rfa) MS100200DX

Revit file (rfa) MS100210DX

Secure Download

Visio Transceiver

Detail information

Description

Description

SFP Transceivers (Small FormFactor Pluggable) have become indispensable components in today's transmission and network technology.

Due to its standardized design (MSA) and as a flexibly exchangeable optical component, the SFP offers great advantages in the dynamic network world.

Especially starting from Gigabit bandwidth (1.25GBit/s) devices with integrated SC or ST optics are rarely available on the market. Mostly and especially in the central area, the SFP is very popular due to its compactness and flexibility. A typical Gigabit application is mainly operated centrally with SFP.

SFP transceivers with DDM function (Digital Diagnostics Monitoring) can display the optical parameters.

At MICROSENS all versions of the Gigabit SFP are used in all device types.

MICROSENS Gigabit Ethernet SFPs are available as in multimode, single mode with different power budgets from 10km (1310nm) to 120km (1550nm) as well as in the simplex variant. All SFPs have optional DDM and are also available with an extended operating temperature range for use in passively cooled components.

Items

Products

Products

Products

MS100200

Product is available

MS100200

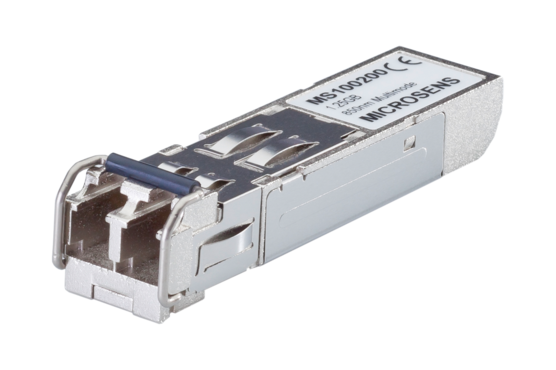

SFP GbE Transceiver 1.25G Multimode 850nm, LC

1x LC duplex MM

Products

MS100200D

Product is available

MS100200D

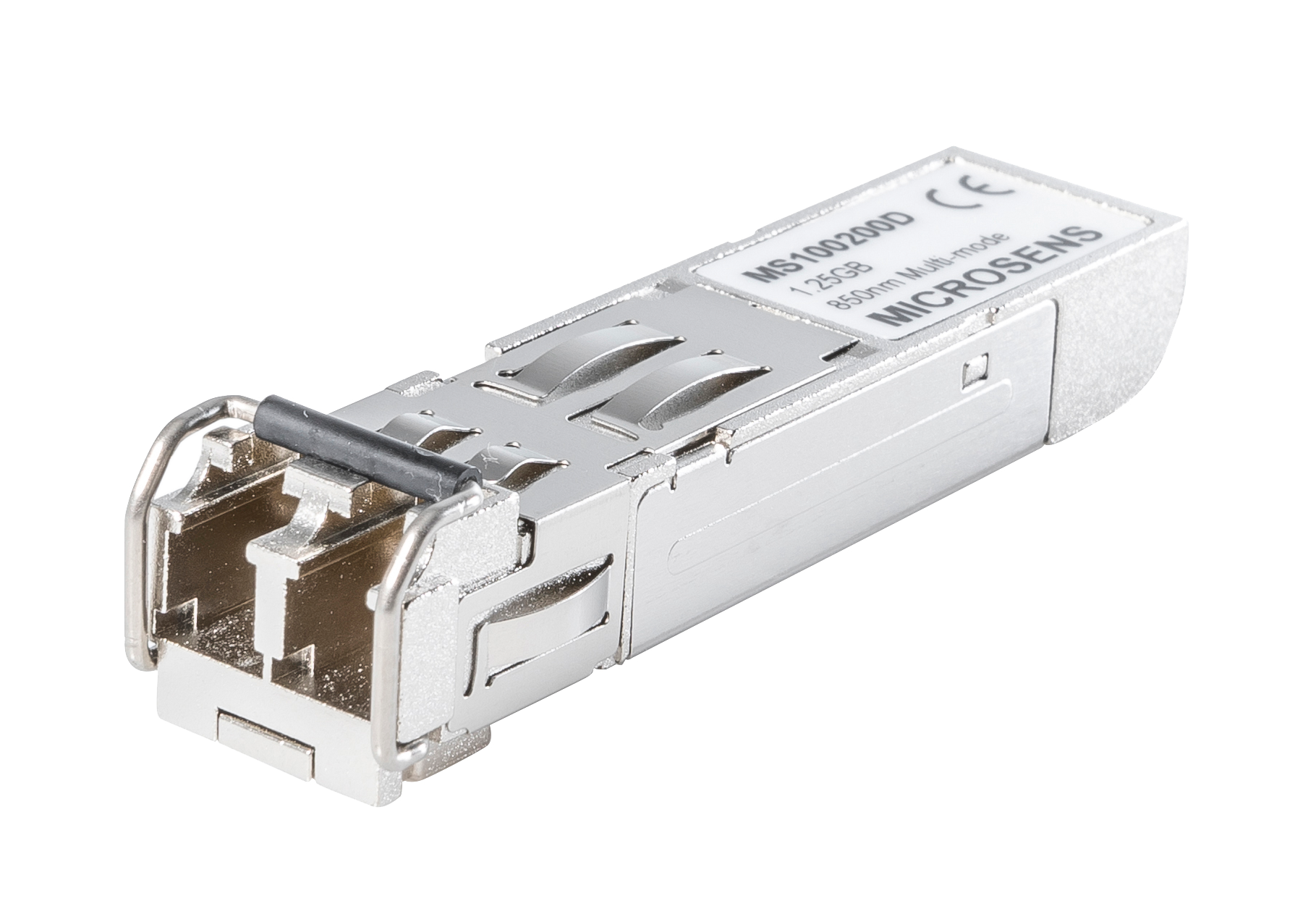

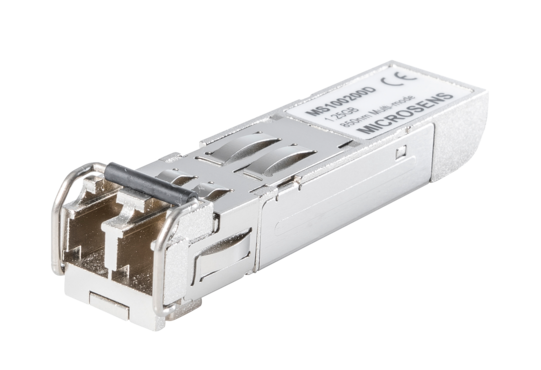

SFP GbE Transceiver 1.25G Multimode 850nm, DDM, LC

1x LC duplex MM

Products

MS100200DX

Product is available

MS100200DX

SFP GbE Transceiver 1.25G Multimode 850nm, DDM, LC, -40..+85°C

1x LC duplex MM

Products

MS100210

Product is available

MS100210

SFP GbE Transceiver 1.25G SingleMode 1310nm, 10km

1x LC duplex SM

Products

MS100210D

Product is available

MS100210D

SFP GbE Transceiver 1.25G SingleMode 1310nm, 10km, DDM, LC

1x LC duplex SM

Products

MS100210DX

Product is available

MS100210DX

SFP GbE Transceiver 1.25G SingleMode 1310nm, 10km, DDM, LC, -40..+85°C

1x LC duplex SM

Products

MS100211

Product is available

MS100211

SFP GbE Transceiver 1.25G SingleMode 1310nm, 25km, LC

1x LC duplex SM

Products

MS100221DXA

Product is available

MS100221DXA

SFP GbE WDM-Transceiver 1.25G SingleMode TX1310nm / RX1550nm, 10km, DDM, LC simplex, -40..+85°C

1x LC simplex SM

Products

MS100221DXB

Product is available

MS100221DXB

SFP GbE WDM-Transceiver 1.25G SingleMode TX1550nm / RX1310nm, 10km, DDM, LC simplex, -40..+85°C

1x LC simplex SM

Products

MS100222DXA

Product is available

MS100222DXA

SFP GbE WDM-Transceiver 1.25G SingleMode TX1310nm / RX1490nm, 10km, DDM, LC simplex, -40..+85°C

1x LC simplex SM

Products

MS100222DXB

Product is available

MS100222DXB

SFP GbE WDM-Transceiver 1.25G SingleMode TX1490nm / RX1310nm, 10km, DDM, LC simplex, -40..+85°C

1x LC simplex SM

Products

MS100223DXA

Product is available

MS100223DXA

SFP GbE WDM-Transceiver 1.25G SingleMode TX1310nm / RX1490nm, 20km, DDM, LC simplex, -40..+85°C

1x LC simplex SM

Products

MS100225DXB

Product is available

MS100225DXB

SFP GbE WDM-Transceiver 1.25G SingleMode TX1550nm / RX1310nm, 60km, DDM, LC simplex, -40..+85°C

1x LC simplex SM

Products

MS100001D

Product is available

MS100001D

SFP GbE Extender FP Transceiver 1.25G Multimode 1310nm, max. 2km, DDM, LC

1x LC duplex MM

Products

MS100090D

Product is available

MS100090D

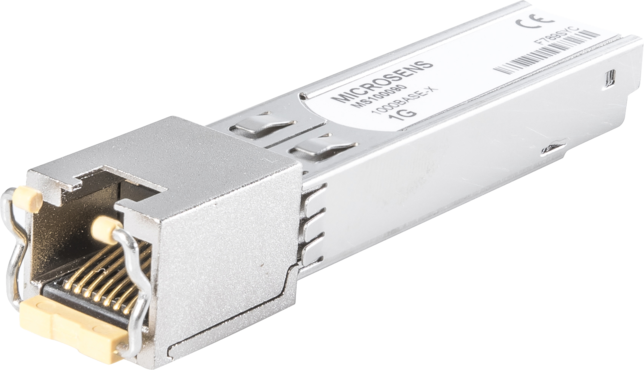

SFP GbE Transceiver TP 1000Base-T, RJ-45

1x RJ-45

Products

MS100090DX

Product is available

MS100090DX

SFP GbE Transceiver TP 1000Base-T, RJ-45, -40..+85°C

1x RJ-45

Products

MS100221DXA-V2

Product is available

MS100221DXA-V2

WDM SFP Gigabit Transceiver max.1,25GB, Single Mode LC simplex 11dB/10km diagn., Tx: 1310nm, Rx: 1550nm extended temp. range -40..85°C, low power consumption

Products

MS100221DXB-V2

Product is available

MS100221DXB-V2

WDM SFP Gigabit Transceiver max.1,25GB, Single Mode LC simplex 11dB/10km diagn., Tx: 1550nm, Rx: 1310nm extended temp. range -40 .85°C, Low Power Consumption

Products

MS100200DX-V2

Product is available

MS100200DX-V2

SFP Gigabit Ethernet Transceiver 1,25GB, 850nm VCSEL Multimode LC diagn -40..85°C, Low Power Consumption

Products

MS100210DX-V2

Product is available

MS100210DX-V2

SFP Gigabit Ethernet Transceiver 1.25GB+, 1.062GB 1310nm SM LC diagnostic -40-85°C, Low Power Consumption

End of Life / Out of product range

End of Life / Out of product range

MS100221DA

show alternative

Product reached his Life-Time

MS100221DA

End of Life / Out of product range

WDM SFP Gigabit Transceiver max.1,25GB Single Mode LC simplex 11dB/10km diagn. Tx: 1310nm, Rx: 1550nm

NIL -> MS100221DXA

hide alternative

MS100221DXA

hide alternative

Product is available

MS100221DXA

hide alternative

SFP GbE WDM-Transceiver 1.25G SingleMode TX1310nm / RX1550nm, 10km, DDM, LC simplex, -40..+85°C

1x LC simplex SM

End of Life / Out of product range

MS100221DB

show alternative

Product reached his Life-Time

MS100221DB

End of Life / Out of product range

WDM SFP Gigabit Transceiver max.1,25GB Single Mode LC simplex 11dB/10km diagn. Tx: 1550nm, Rx: 1310nm

NIL -> MS100221DXB

hide alternative

MS100221DXB

hide alternative

Product is available

MS100221DXB

hide alternative

SFP GbE WDM-Transceiver 1.25G SingleMode TX1550nm / RX1310nm, 10km, DDM, LC simplex, -40..+85°C

1x LC simplex SM

End of Life / Out of product range

MS100222DA

show alternative

Product reached his Life-Time

MS100222DA

End of Life / Out of product range

WDM SFP Gigabit Transceiver max.1,25GB Single Mode LC simplex 11dB/10km diagn. Tx: 1310nm, Rx: 1490nm

NIL -> MS100222DXA

hide alternative

MS100222DXA

hide alternative

Product is available

MS100222DXA

hide alternative

SFP GbE WDM-Transceiver 1.25G SingleMode TX1310nm / RX1490nm, 10km, DDM, LC simplex, -40..+85°C

1x LC simplex SM

End of Life / Out of product range

MS100222DB

show alternative

Product reached his Life-Time

MS100222DB

End of Life / Out of product range

WDM SFP Gigabit Transceiver max.1,25GB Single Mode LC simplex 11dB/10km diagn. Tx: 1490nm, Rx: 1310nm

NIL -> MS100222DXB

hide alternative

MS100222DXB

hide alternative

Product is available

MS100222DXB

hide alternative

SFP GbE WDM-Transceiver 1.25G SingleMode TX1490nm / RX1310nm, 10km, DDM, LC simplex, -40..+85°C

1x LC simplex SM
