FTTO PoE+/PoE++ installation power supplies
- Models available with 65W / 150W, dependent on PoE requirements
- Compact and fanless - optimized design for easy installation & efficient heat transfer
- Wide range of mounting kits available for various applications
- High efficiency
- Input voltage 90..240VAC, output voltage 54VDC (PoE+/++ typ.)
- Compatible with all PoE+/++ (IEEE 802.3af/at/bt) MICROSENS Micro Switch models
Secure DownloadFor the use of MICROSENS components with Power-over-Ethernet functionality according to IEEE 802.3af as well as Power-over-Ethernet (+) according to IEEE 802.3at, these power supply types (switching power supply 54VDC, MS700701 as well as PoE+ installation power supply MS700710) provide an universal compact power supply for installation in cable ducts, underfloor systems or surface-mounted housings.
The power supply is typically used 1:1, which means that one power supply unit is planned and used per switch.
It is also possible to supply two switches per power supply. In that case, please keep in mind the available PoE+ power per switch is then only available with around 30W in total.

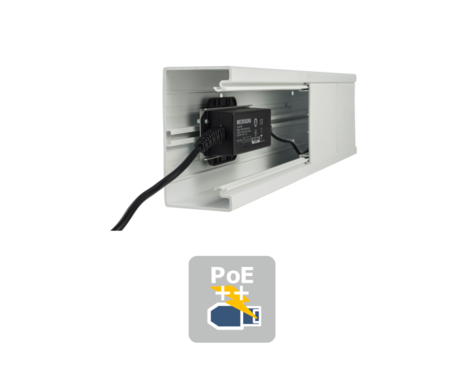

In addition to the standard version, special holding devices are available for installation in cable ducts from various manufacturers. For example, the power supply unit for installation in Tehalit BR-Netway cable ducts has been combined with the front-locking universal channel earthing. A further power supply version can be installed in standard E2 device sockets with a 70 mm installation track.
Special versions with pre-assembled connectors on the primary side are available as an option to the standard power supplies. The commonly known WAGO or WIELAND plugs can be purchased directly pre-assembled on the power supply.
MS410518-V2
Product is available
MS410518-V2
FE Desktop Mini Bridging Konverter SM 1x 100FX SC/SM (80km), 1x 10/100TX, ext. screw-PS (110/230VAC)
1x SC duplex SM, 1x RJ-45, 1x SV screw
MS453501PM-48G6+
Product is available
MS453501PM-48G6+
6-Port GbE Mini Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, inkl. PS 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 54VDC, 1x Konsole, 1x microSD-Slot
MS700741
Product is available
MS700741

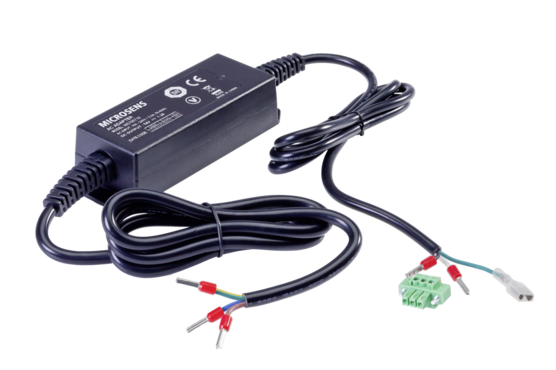

Switching power supply for PoE+ Micro Switches, input 100-120/200-240VAC, 1m open end lead, 3x 1.5 mm², output 54VDC/65W with 1m lead
input: 3x 1.5 mm² with electric wire ferrules; output: Mini-Combicon-plug
MS700741-UNI
Product is available
MS700741-UNI
Switching power supply for PoE+ Micro Switches input 100-120/200-240VAC, 1m open end lead, output 54VDC/65W with 1m lead on C-profile adaptor, 35 mm rail (Combi / DIN)
input: 3x 1.5 mm² with electric wire ferrules; output: Mini-Combicon-plug
MS700741-UNI-WG
Product is available
MS700741-UNI-WG
Switching power supply for PoE+ Micro Switches input 100-120/200-240VAC, 1m lead, output 54VDC/65W with 1m lead on C-profile adaptor, 35 mm rail (Combi / DIN)
input: 3x 1.5 mm² with WAGO plug; output: Mini-Combicon-plug
MS700741-WG
Product is available
MS700741-WG
Switching power supply for PoE+ Micro Switches input 100-120/200-240VAC, 1m lead, output 54VDC/65W with 1m lead
input: 3x 1.5 mm² with WAGO plug; output: Mini-Combicon-plug
MS700741-WL
Product is available
MS700741-WL
Switching power supply for PoE+ Micro Switches input 100-120/200-240VAC, 1m lead, output 54VDC/65W with 1m lead
input: 3x 1.5 mm² with Wieland plug; output: Mini-Combicon-plug
MS700701
Product is available
MS700701

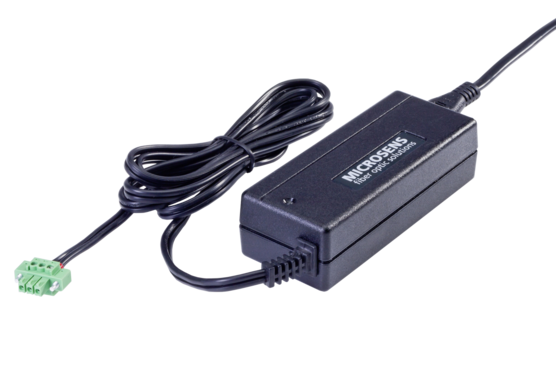

Schaltnetzteil 54V/1,2A 65W für PoE+ 45x45 und Desktop Switch, Euro-8 Kabel
In: IEC320 (C8), Out: DC Schraubklemme
MS700701-EKTH
Product is available
MS700701-EKTH
Schaltnetzteil 54V/1,2A 65W für 45x45 PoE+ Switch Tehalithalterung Euro8-Kabel
In: IEC320 (C8), Out: DC Schraubklemme
MS700701-KY
Product is available
MS700701-KY
Schaltnetzteil 54V/1,2A 65W für PoE+ Kycon-Stecker G6 Desktop, Euro-8 Kabel DC:plugable connector
In: IEC320 (C8), Out: Kycon-Stecker
MS700701-V
Product is available
MS700701-V
Schaltnetzteil 54V/1,2A 65W für PoE+ Desktop und 45x45 Switch, Euro-8 Kabel mit Klemmen
In: IEC320 (C8), Out: DC Schraubklemme
MS700701B
Product is available
MS700701B
Schaltnetzteil 54V/1,2A 65W für PoE+ 45x45 und Desktop Switch, Euro-8 Kabel DC:screwable connector
In: IEC320 (C8), Out: DC Schraubklemme
MS700680
Product is available
MS700680
Medical AC/DC Adapter, 48VDC/1,25A 60W Input: 90..264VAC, EN60601-1 appr.
1x Schuko, 1x DC Schraubklemme
MS700742
Product is available
MS700742
Installationsnetzteil PoE+/++ 150W, prim. 115..230VAC, 1m Zul., offen 3x 1,5mm², sek. 54VDC / 2,8A;1m Zul., Combicon-St.
MS700742-UNI
Product is available
MS700742-UNI
Installationsnetzteil PoE+/++ 150W, prim. 115..230VAC, 1m Zul., offen 3x 1,5mm², sek. 54VDC / 2,8A; 1m Zul., Combicon-St., auf Adapter C-Profil, 35 mm Schiene (Kombi / DIN)
MS700742-UNI-WG
Product is available
MS700742-UNI-WG
Installationsnetzteil PoE+/++ 150W, prim. 115..230VAC, 1m Zul., 3x 1,5mm², WAGO-St., sek. 54VDC / 2,8A; 1m Zul., Combicon-St., auf Adapter C-Profil, 35 mm Schiene (Kombi / DIN)
MS700742-WG
Product is available
MS700742-WG
nstallationsnetzteil PoE+/++ 150W, prim. 115..230VAC, 1m Zul., 3x 1,5mm², WAGO-St., sek. 54VDC / 2,8A; 1m Zul., Combicon-St.
MS700742-WL
Product is available
MS700742-WL
Installationsnetzteil PoE+/++ 150W, prim. 115..230VAC, 1m Zul., 3x 1,5mm², GST18-St., sek. 54VDC / 2,8A; 1m Zul., Combicon-St.
MS140075-10F
Product is available
MS140075-10F
Montageadapter für MS700710 für frontrastende Stahl-Geräteeinbaukanäle von Tehalit, mit 80 mm Spur (ohne Netzteil)
MS140075-MAG
Product is available
MS140075-MAG
Magnethalteset für MS700701 bestehend aus Magnethalterung mit Zugentlastung und Kabelbinder (ohne Netzteil)
MS140075-UNI
Product is available
MS140075-UNI
Montageadapter für MS700710 C-Profil, 35 mm Kombischiene, 35 mm DIN-Schiene (ohne Netzteil)
MS140076
Product is available
MS140076
Netzteil-Einbausatz für Gerätedose bestehend aus Montagerahmen, Netzteilhalter, Abdeckrahmen und 2x M45 Blindmodul
MS190260-F
Product is available
MS190260-F
Wieland Gesis Verbindungsbuchse, passend zu Wieland Gesis Verbindungsstecker MS190260-M
MS190260-M
Product is available
MS190260-M
Wieland Gesis Verbindungsstecker, passend zu Wieland Gesis Verbindungsbuchse MS190260-F
MS190261-F
Product is available
MS190261-F
WAGO-WINSTA® MIDI Buchse, passend zu WAGO-WINSTA® MIDI Stecker MS190261-M
MS190261-M
Product is available
MS190261-M
WAGO-WINSTA® MIDI Stecker, passend zu WAGO-WINSTA® MIDI Buchse MS190261-F
MS400194
Product reached his Life-Time
MS400194
End of Life / Out of product range GbE Desktop Konverter SM 1x 1000LX SC/SM (70km), 1x 1000T, ext. PS (110/230VAC)
1x RJ-45, 1x SC duplex SM, 1x SV
MS400249
Product is available
MS400249
GbE Desktop Bridging Konverter SFP 1x 1000X SFP-Slot, 1x 10/100/1000T, ext. PS (110/230VAC)
1x RJ-45, 1x SFP Slot, 1x SV
MS700675
Product reached his Life-Time
MS700675
End of Life / Out of product range Schaltnetzteil 48V/1,35A 65W für 45x45 Power over LAN Switch, Kleingerätekabel
NIL -> MS700701
MS700701
Product is available
MS700701
Schaltnetzteil 54V/1,2A 65W für PoE+ 45x45 und Desktop Switch, Euro-8 Kabel
In: IEC320 (C8), Out: DC Schraubklemme
MS700675-2
Product reached his Life-Time
MS700675-2
End of Life / Out of product range Schaltnetzteil 48V/1,35A 65W für 45x45 PowerOverEthernetSwitch Kleingerätekabel
NIL -> MS700701
MS700701
Product is available
MS700701
Schaltnetzteil 54V/1,2A 65W für PoE+ 45x45 und Desktop Switch, Euro-8 Kabel
In: IEC320 (C8), Out: DC Schraubklemme
MS700675-EKTH
Product reached his Life-Time
MS700675-EKTH
End of Life / Out of product range Schaltnetzteil 48V/1,35A 65W für 45x45 PoE Switch, Tehalithalterung Euro8-Kabel
NIL -> MS700701-EKTH
MS700701
Product is available
MS700701
Schaltnetzteil 54V/1,2A 65W für PoE+ 45x45 und Desktop Switch, Euro-8 Kabel
In: IEC320 (C8), Out: DC Schraubklemme
MS700675B-2
Product reached his Life-Time
MS700675B-2
End of Life / Out of product range Power supply 48VDC/1,35A 65W DC:screwable con. AC: euro power cord
NIL -> MS700701B
MS700701
Product is available
MS700701
Schaltnetzteil 54V/1,2A 65W für PoE+ 45x45 und Desktop Switch, Euro-8 Kabel
In: IEC320 (C8), Out: DC Schraubklemme
MS700720
Product reached his Life-Time
MS700720
End of Life / Out of product range Schaltnetzteil 120 W prim. 85..264VAC, 1m Zul., 3x 1,5mm², Schuko-St., sek. 48 VDC/2,5A, 1m Zul., offene Enden
In: 3-plg., Out: 3-plg. offen
MS700742
Product is available
MS700742
Installationsnetzteil PoE+/++ 150W, prim. 115..230VAC, 1m Zul., offen 3x 1,5mm², sek. 54VDC / 2,8A;1m Zul., Combicon-St.
MS700721
Product reached his Life-Time
MS700721
End of Life / Out of product range Power supply for PoE+ Switches 120 W, 48 VDC/1.2A 85-264 VAC/48VDC, 2.5A, Power 4P DIN Connector
In: 3-plg., Out: DIN-Connector
MS700742
Product is available
MS700742
Installationsnetzteil PoE+/++ 150W, prim. 115..230VAC, 1m Zul., offen 3x 1,5mm², sek. 54VDC / 2,8A;1m Zul., Combicon-St.
MS700722
Product reached his Life-Time
MS700722
End of Life / Out of product range Power supply for PoE+ Switches 120 W, 48 VDC/1.2A 85-264 VAC / 48 VDC, 2.5 A, 2.5mm Connector
In: 3-plg., Out: 2.5mm Connector
MS700742
Product is available
MS700742
Installationsnetzteil PoE+/++ 150W, prim. 115..230VAC, 1m Zul., offen 3x 1,5mm², sek. 54VDC / 2,8A;1m Zul., Combicon-St.
