10-Port GbE Desktop Switch managed

Inquiry
10-Port GbE Desktop Switch managed

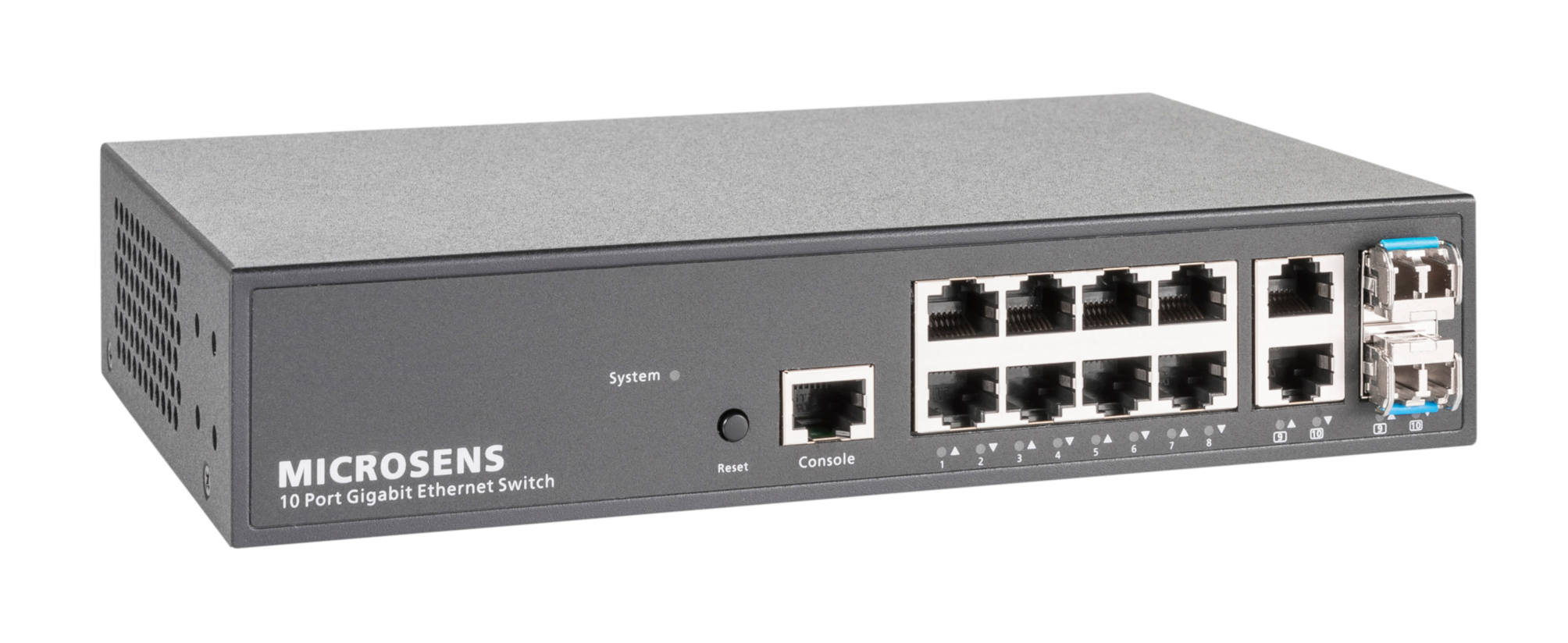

MS453526M + SFPs
MS453526M + SFPs

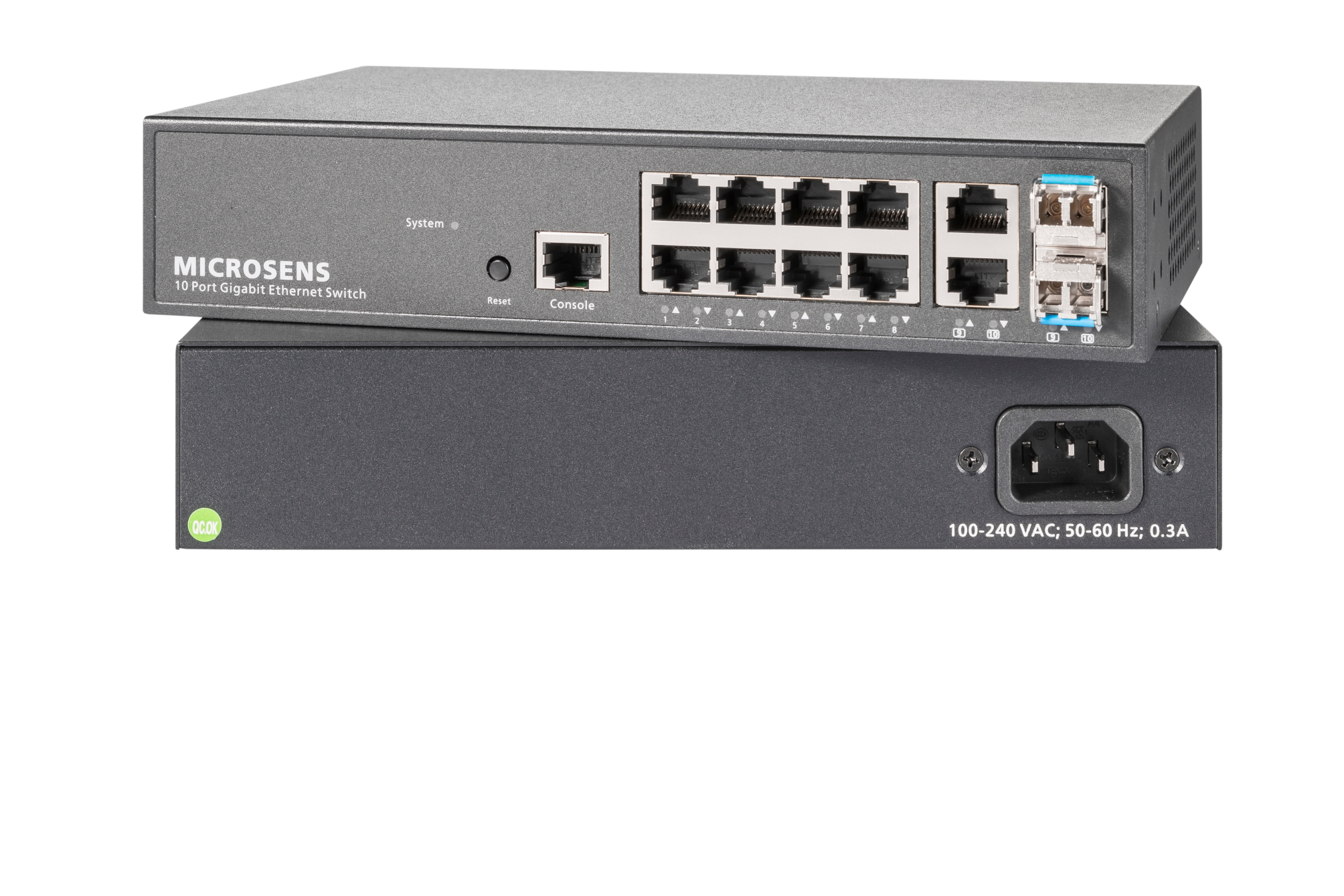

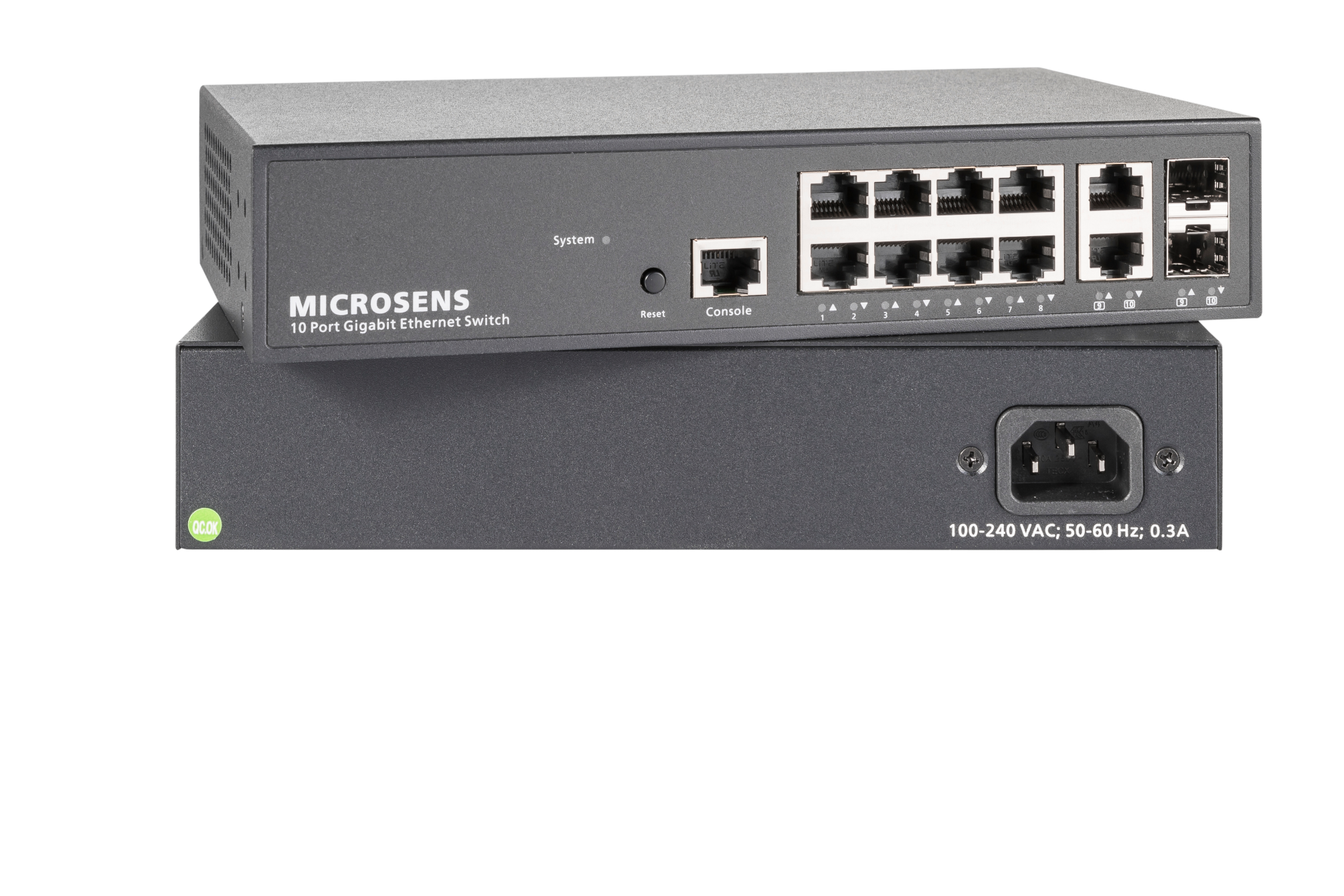

MS453526M front and back
MS453526M front and back
MS453526M + SFPs
MS453526M + SFPs

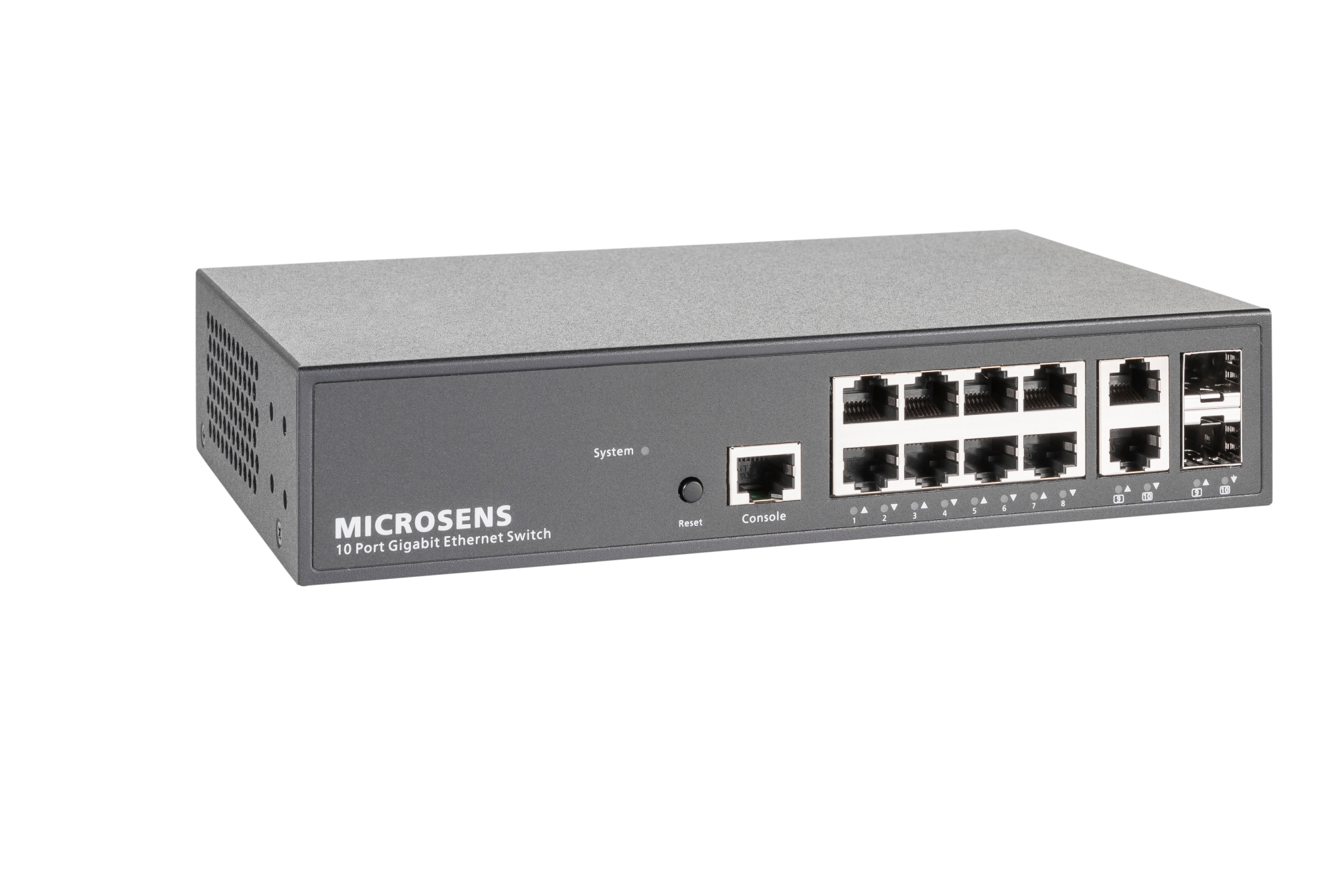

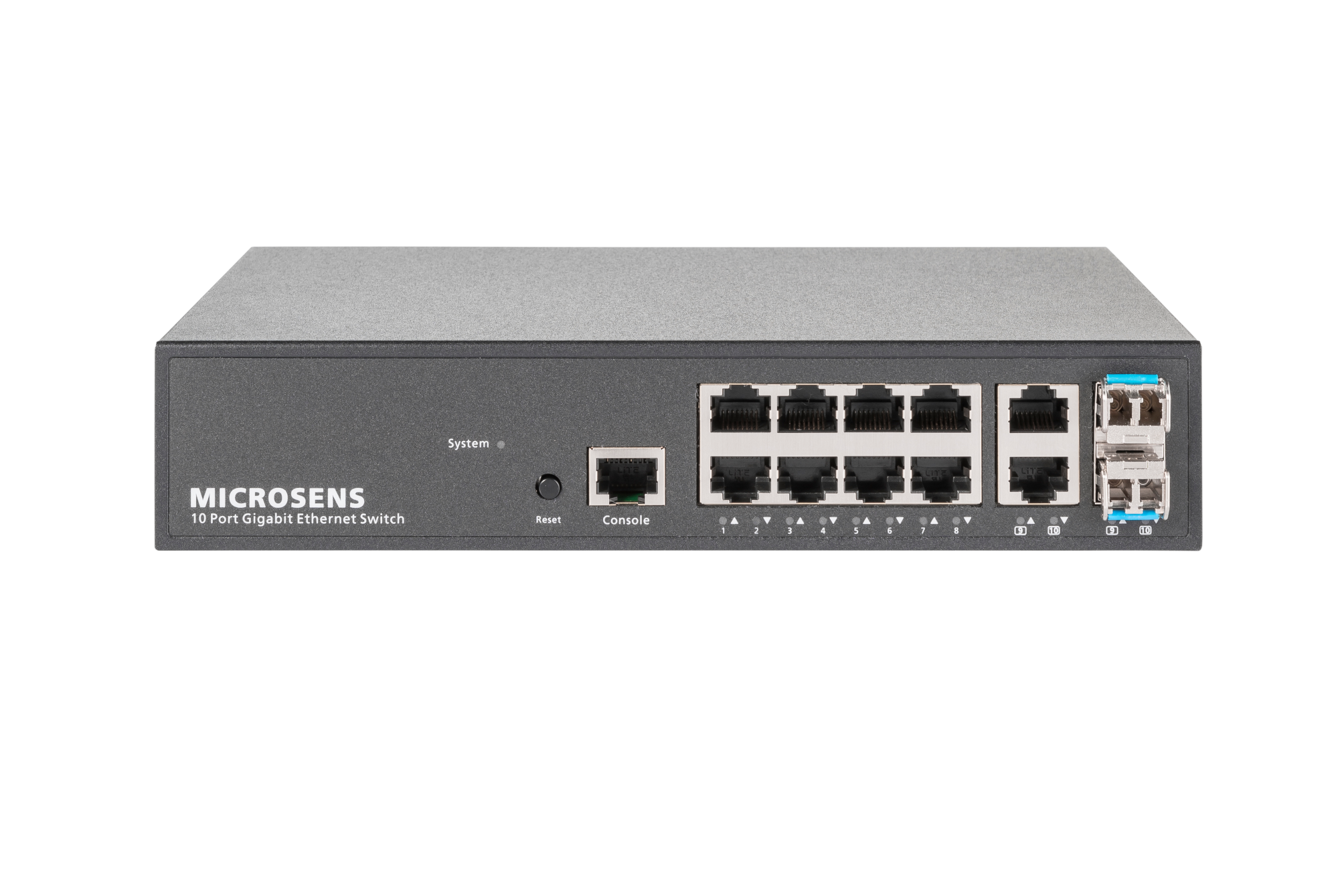

MS453526M
MS453526M

10-Port GbE Desktop Switch managed

  • Manageable fanless Gigabit Ethernet 10-port desktop switch
  • Manageable Layer2 switch SNMP enterprise class
  • 8x 10/100/1000Base-T, 2x Dual Media TP/SFP Slots (100/1000Base-X)
  • Layer 2 non blocking, 8k MAC addresses, 20Gbps switching backplane
  • Integrated 230 VAC power supply
  • Extensive IT security portfolio (802.1x, RADIUS, TACACS+ etc.)
Download
Data sheet
Product Manual CLI
Product Manual HW
Product Manual SW
Secure Download
Firmware MS453526M V6.54.3581
Firmware EOL MS453522M v3.78
Firmware EOL MS453490M v1.1.4.7.1
Detail information
Description
Description

The 10 Port Gigabit Desktop Switch is an enterprise class MICROSENS with a high number of interfaces in a compact design.



The switch's two modular transceiver ports (SFPs) in dual speed design (100/1000Base-X) offer very high flexibility for enterprise network applications. The switch has a total of 10 copper ports (10/100/1000Base-T auto negotiation), two of which are designed as combo ports to the SFP slots. The Gigabit Switch is compatible with SNMP, Telnet, and Web-based management interfaces and supports standards such as QoS, VLAN, access control, Layer 3 static routing, and more.

Items

Products
Products
Products

MS453526M


Product is available

Order offer

MS453526M

10-Port GbE Desktop Switch managed 2x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 8x 10/100/1000T, RS-232 Port (RJ-45),  lüfterlos, int. 110/230VAC (C14)

10x RJ-45, 2x SFP Slots, 1x Konsole, 1x SV

End of Life / Out of product range
End of Life / Out of product range

MS700468

show alternative

Product reached his Life-Time

Order offer

MS700468

End of Life / Out of product range

Industrial DIN-Rail Netzteil 48VDC / 7,5A PoE+ (360W) Input 85..264VAC, Output 48..56VDC, -25..+70°C

NIL --> MS700479

hide alternative

MS700479

hide alternative

Product is available

Order offer

MS700479

hide alternative

Industrial DIN-Rail PoE+ Power Supply 54VDC / 480W, Input 85…264VAC, Output 48..56VDC, -30..+70°C

End of Life / Out of product range

MS483751

show alternative

Product reached his Life-Time

Order offer

MS483751

End of Life / Out of product range

Gigabit Ethernet Adapter Card 1000BaseLX Single Mode 1310nmSC10km PCI Express Bus

EOL -> MS484189USB zzgl. MS100210

hide alternative

MS484189USB

hide alternative

Product is available

Order offer

MS484189USB

hide alternative

GbE PC-Bridging Slotkonverter 1x 100/1000X SFP-Slot, 1x 10/100/1000T, powered via PC-int. USB

1x RJ-45, 1x SFP Slot, 1x SV

End of Life / Out of product range

MS453111M

show alternative

Product reached his Life-Time

Order offer

MS453111M

End of Life / Out of product range

Mini Switch 8 Port, 7x10/100TX+FX SCMM SC 1310nm Multimode, ext. Netzteil manag

EOL -> MS453526M zzgl. MS100190D

hide alternative

MS453526M

hide alternative

Product is available

Order offer

MS453526M

hide alternative

10-Port GbE Desktop Switch managed 2x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 8x 10/100/1000T, RS-232 Port (RJ-45),  lüfterlos, int. 110/230VAC (C14)

10x RJ-45, 2x SFP Slots, 1x Konsole, 1x SV

End of Life / Out of product range

MS453490M

show alternative

Product reached his Life-Time

Order offer

MS453490M

End of Life / Out of product range

10 Port Layer2/4 Switch 8x10/100TX,2xGBE combo SFP/RJ45 Ports, int power supply, Enhanced Security: 802.1x/RADIUS, SSH,SSL; Management: SNMP v1/2/3, Web, Telnet, CLI; Spanning Tree: STP/RSTP/MSTP; VLANs, QoS, Bandwith Control, Port Trunking, Link Aggregation, IGMP Snooping, IPv4/IPv6 Dual Protocol stack

EOL -> MS453526M

hide alternative

MS453526M

hide alternative

Product is available

Order offer

MS453526M

hide alternative

10-Port GbE Desktop Switch managed 2x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 8x 10/100/1000T, RS-232 Port (RJ-45),  lüfterlos, int. 110/230VAC (C14)

10x RJ-45, 2x SFP Slots, 1x Konsole, 1x SV

End of Life / Out of product range

MS453522M

show alternative

Product reached his Life-Time

Order offer

MS453522M

End of Life / Out of product range

8 Port Mini Switch 8x10/100/1000T,2xSFP Ports, int power supply, SNMP manageable VLANs, QoS, Bandwith Control, Port Trunking, 802. 1x Authentification, Rapid Spanning Tree

EOL -> MS453526M

hide alternative

MS453526M

hide alternative

Product is available

Order offer

MS453526M

hide alternative

10-Port GbE Desktop Switch managed 2x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 8x 10/100/1000T, RS-232 Port (RJ-45),  lüfterlos, int. 110/230VAC (C14)

10x RJ-45, 2x SFP Slots, 1x Konsole, 1x SV
