Multi PoE+/++ Switches 19“

Multi PoE+/++ Switches 19“

Highlights
Accessoires du système

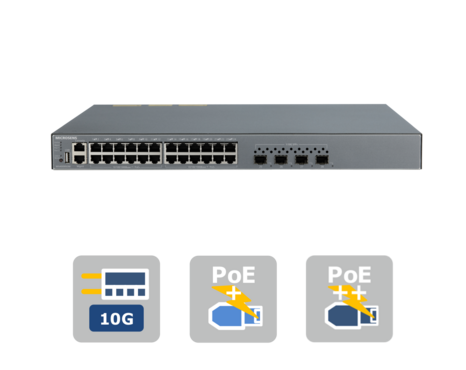

Cost-effective 28-port Gigabit Ethernet 19" switch, 24x 10/100/1000Base-T PoE+ ports (802.3at) and a power budget of 370W
4x 100/1000Base-X SFP Slots (uncoded)
Extensive functions such as QoS, VLANs, RSTP, etc.
Network management via web browser
Low total cost of ownership (TCO) due to energy-efficient design
Enhanced PoE management and disposition through 802.3az (Energy Efficient Ethernet)

Télécharger (download)

Tous les téléchargements

User Manual MS400835M

Quick Start Guide MS400970M

Quick Start Guide MS400980M

Quick Start Guide MS400981M

Revit file (rfa) MS400970M

Téléchargements protégés

Firmware MS400835M v1.0.0.16

Firmware MS400970M v1.3.1j

Firmware MS400980M V1.3.1j

Firmware MS400981M V1.3.1j

Firmware EOL MS400834M 1.2.1433

Firmware EOL MS400834M 1.2.1261

Firmware EOL MS400830M 1.58

LV Text Multi PoE+ Switches

Visios MS400835M + MS400970M

Informations détaillées

Description

The high-performance 28-port Gigabit Ethernet switch is specially designed for use in networks in which Power-over-Ethernet functionality is used. All 24 10/100/1000Base-T copper ports offer PoE according to IEEE802.3af and IEEE802.3at standards.

This allows end devices connected to the network port to be supplied with a power of up to 30 W per port cost-effectively and without additional cabling. The total power output of the switch is up to 370 W.

The 28 port switch has 4x 100/1000X ports. This enables a direct connection to a GBE fiber optic backbone via standard SFP transceivers. Switches located further away can be cascaded via fiber optic cables.

All network ports are accessible from the front of the device, making patching much easier. The switch is equipped with an integrated smart management (via web browser). In addition, the status information can be read out via SNMP. The GBE switch also supports a wide range of functions such as QoS, VLANs, STP/RSTP, loop protection, IGMP snooping, SNMP traps and much more.

The device is powered with 100..230 VAC via a connector on the rear of the device.
